Bike computer with graphics screen

I’ve designed a complete new hardware & software for the bicycle comp that I’ve published some months ago. This one has a 128X64 monochrome graphics screen instead of the 16×2 character display of the former one.

the product on the handlebar
the product on the handlebar
the product on the handlebar
the product on the handlebar
The product design
The product is held on the handlebar by two elastic o-rings

this has got real time clock as well as the temperature sensor like the old one. But all data can either be shown fully digital or two different analog display modes.

on off switch
on off switch

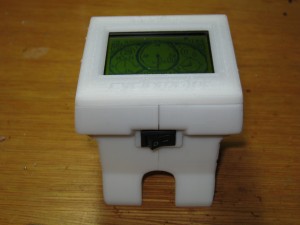

with the open lid  LCD is visible inside
with the open lid
LCD is visible inside
increment decrement buttons at the side.
increment decrement buttons at the side.
Aventador style mode graphics.
Aventador style mode graphics.
Aventador style
Aventador style
aventador mode
aventador mode
setup screen
setup screen
in the plastic box that housed the prototype pcb for a while
in the plastic box that housed the prototype pcb for a while
2012-12-16 21.04.33
digital mode
digital mode
analogue mode
analogue mode
digital mode closeup
digital mode closeup
sensor clips parts
sensor clips parts
this is the sensor clips for the wheel.
this is the sensor clips for the wheel.
analog mode close up
analog mode close up

CCS source codes and proteus schematic-simulation files can be found below.

(due to some wordpress limitations you need to change the .stl extension to .zip to open the archive file)
