The USS Alligator, built in 1862, was the United States Navy’s first submarine and represented a significant innovation in naval technology during the Civil War. Designed by French engineer Brutus de Villeroi, the submarine measured about 47 feet in length and was constructed from iron, giving it a robust and watertight hull. Initially propelled by a series of hand-cranked paddles operated by the crew, the propulsion system was later upgraded to a screw propeller, although it remained manually powered. The vessel was equipped with air-purifying mechanisms, allowing it to stay submerged longer than most early submarines. Its primary armament was a “torpedo” (essentially a mine) that could be deployed against enemy ships. The Alligator also featured an innovative lock-out chamber, enabling divers to exit and perform underwater sabotage tasks, a novel concept for its time.
Continue reading for more images and a free STL file for a scaled down display model.
Or you can get the multi part hi-rez 1m model from here.
The submarine was commissioned during the Union’s efforts to break the Confederate blockade, but it faced numerous technical and operational challenges. After undergoing trials in the Potomac River and the Washington Navy Yard, the Alligator was transported to Hampton Roads for potential deployment. However, its slow speed and reliance on manual propulsion limited its effectiveness. During its transfer to Charleston for operations against Confederate defenses, the Alligator was lost at sea in a storm off Cape Hatteras in April 1863. While it never saw combat, the USS Alligator’s design and development provided valuable lessons that informed future submarine innovations, marking it as a pioneering vessel in the history of underwater warfare.

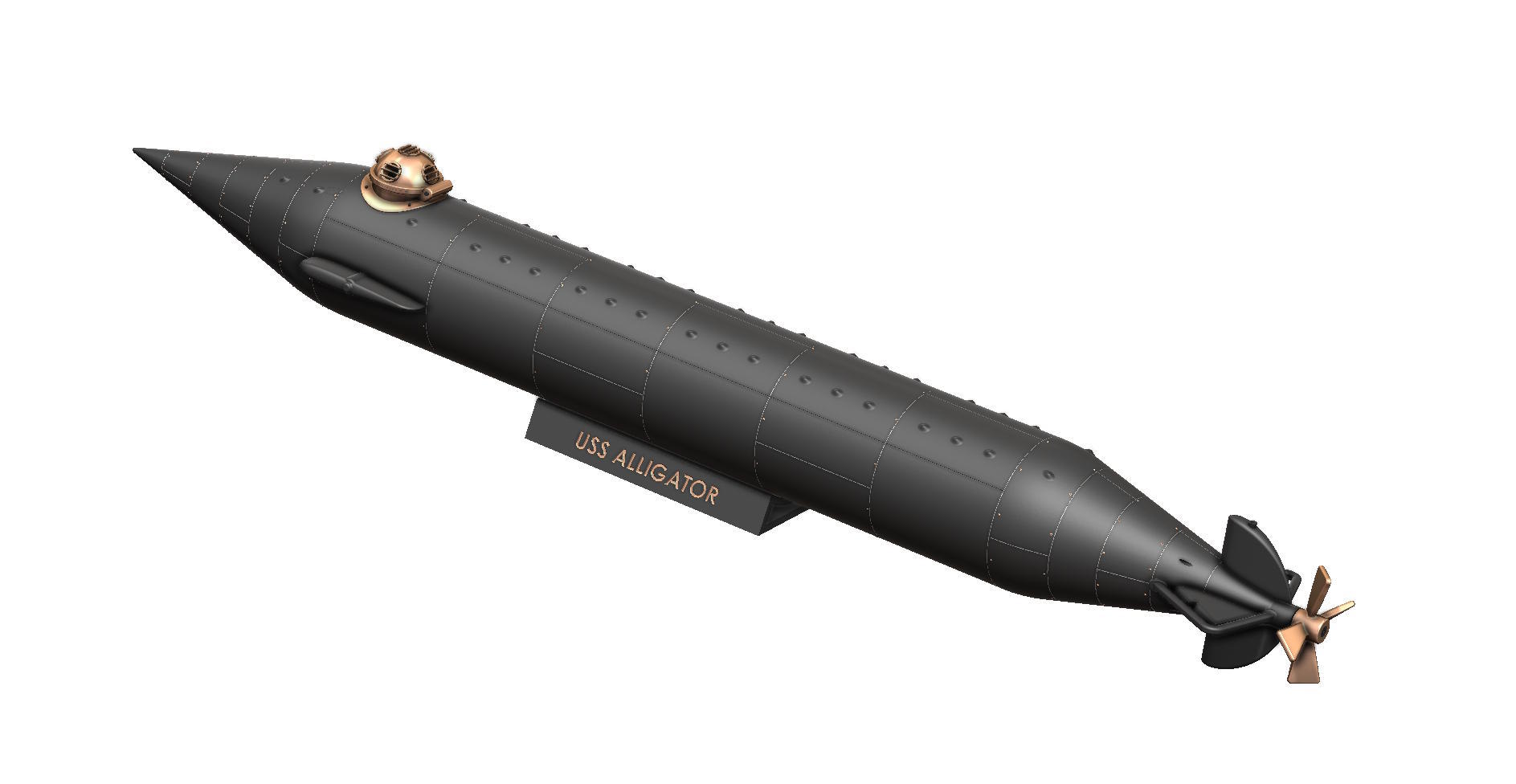

Dive into History with the USS Alligator: A Stunning 1-Meter RC Model!
Unleash your creativity and engineering skills with our 33-piece 3D Printable STL File Pack, meticulously designed to recreate a 1-meter long, remote-control-capable model of the legendary USS Alligator submarine. This incredible digital package allows you to print, assemble, and bring to life a piece of naval history—right from your own workspace.
What’s Included:
- 33 Highly Detailed STL Files: Every piece is designed with precision for smooth 3D printing and easy assembly.
- Modular Construction: Perfectly sized components for most desktop 3D printers. Build your Alligator piece by piece with ease.
- Functional RC Design: Crafted for remote control compatibility, with space for motors, batteries, and other electronics (electronics not included).
- Historical Accuracy: Faithfully replicates the iconic 1862 submarine, from its iron-clad hull to its innovative paddle propulsion system.
- Customizable Interior: Includes optional compartments for added realism or modification.
Why Choose This Model?
- Perfect for Enthusiasts: Whether you’re a naval history buff, a model builder, or an RC hobbyist, this pack offers endless opportunities for fun and learning.
- Educational Value: Dive into the engineering marvels of the Civil War era while building a working replica of the USS Alligator.
- Standout Display: Once completed, this 1-meter long model is perfect for display or RC water adventures.
Getting Started:
- Download the STL file pack.
- Print the pieces using your preferred 3D printer.
- Assemble the model with simple instructions.
- Add electronics to turn your USS Alligator into a fully functional RC masterpiece.
Ready to Make History?
Bring the past into the present with this unique, interactive 3D printable project. Whether for display or operation, the USS Alligator model is a tribute to innovation and design. Start your underwater adventure today!
Note that as we worked hard to make this model capable of being converted into a RC project, but it is still a project and not an easy one. This is not a ready made, tested kit. So we can’t guarantee that your project will be successful. It is more of a matter of your ability as a RC builder. So please study the pictures and check the details of the model to decide if the details are suitable for your abilities. We always listen to feedback on the details of our models. If you send us a list of changes to be made thru our contact page, we surely make our best to make them on the models.
Visit our online sale page to purchase and download the STL file pack. The free STL file is below.
