An Accessible Art Deco Project From Norman Bel Geddes
In 1932, legendary theatrical designer and industrial design pioneer Norman Bel Geddes published Horizons, a manifesto that helped define the Streamline Moderne movement. Among his most radical concepts was an aerodynamic, teardrop-shaped ocean liner affectionately dubbed the “Whale.” Designed with a smooth, completely enclosed superstructure, internal lifeboats deployed via launch chutes, and a futuristic aircraft hangar built directly into its giant twin funnels, this 1,083-foot titan was envisioned to slice through the Atlantic and shave an entire day off transatlantic crossings.
Because the real-world ship was never built, it exists today only in historical patent blueprints, speculative illustrations, and archive records. Now, a new 3D-printable model from endtas brings this unbuilt legend onto desktop printers and into the water.
Continue reading for more info or proceed to model’s purchase page.
Balancing Historical Impression with Practical Engineering

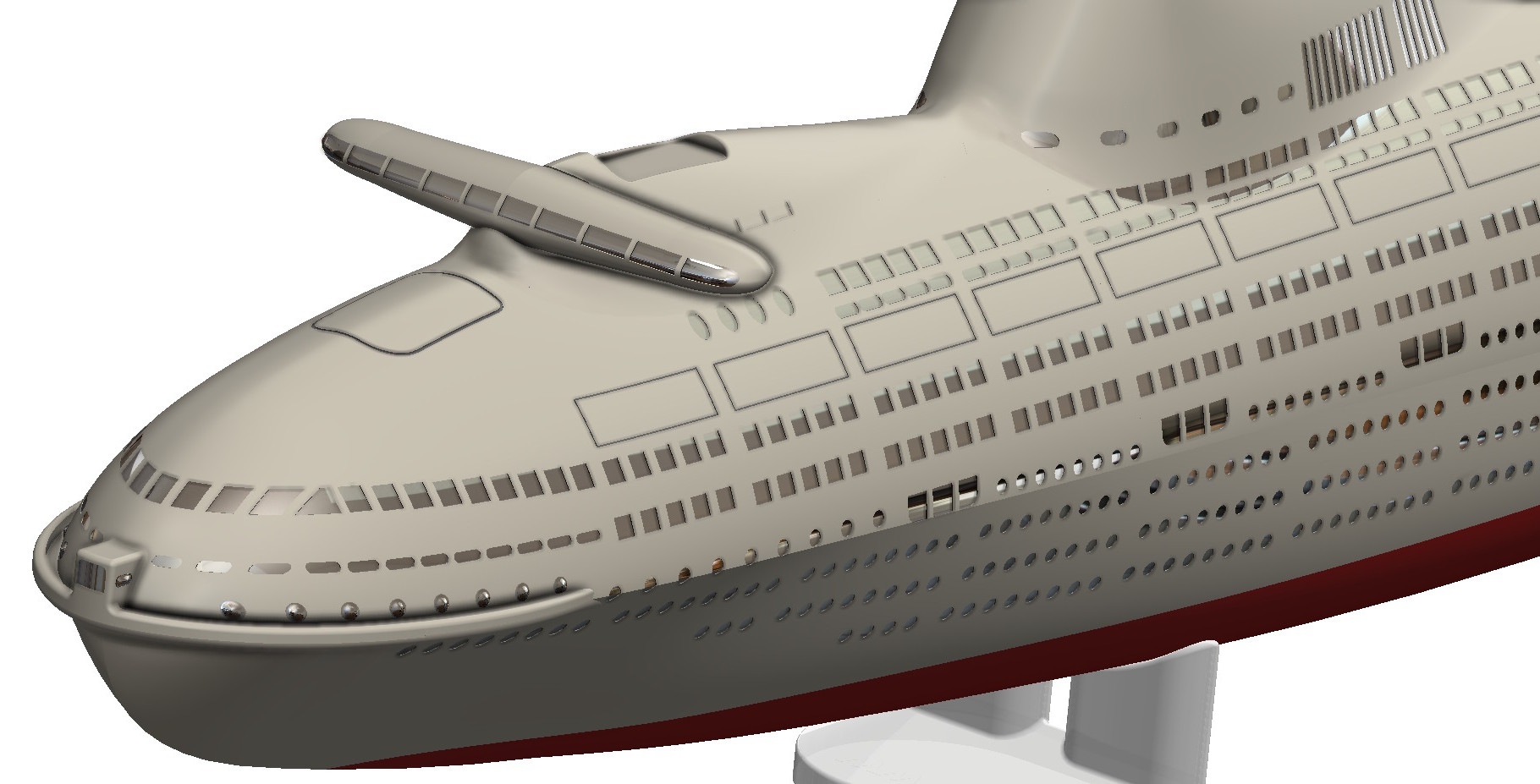

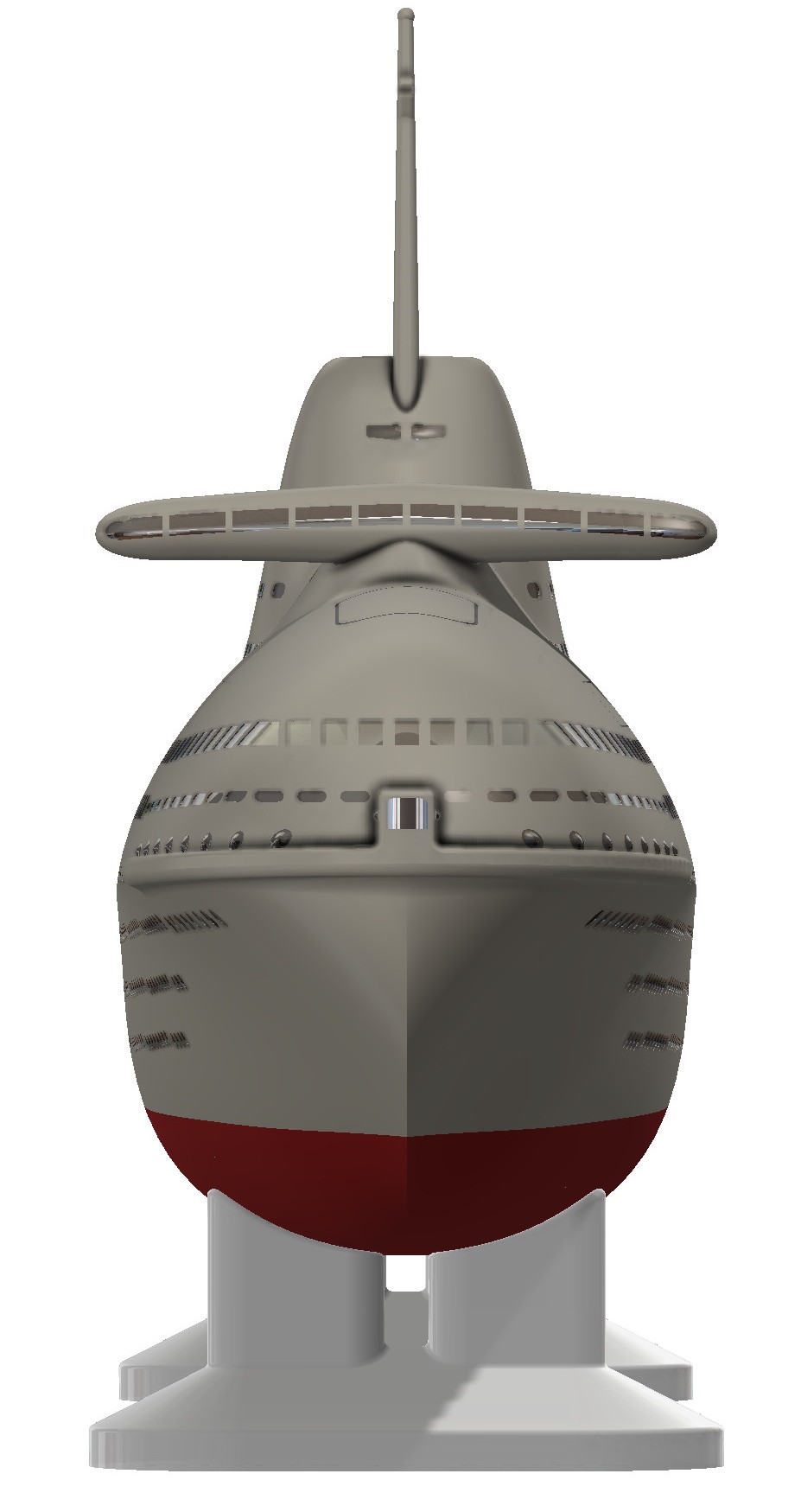

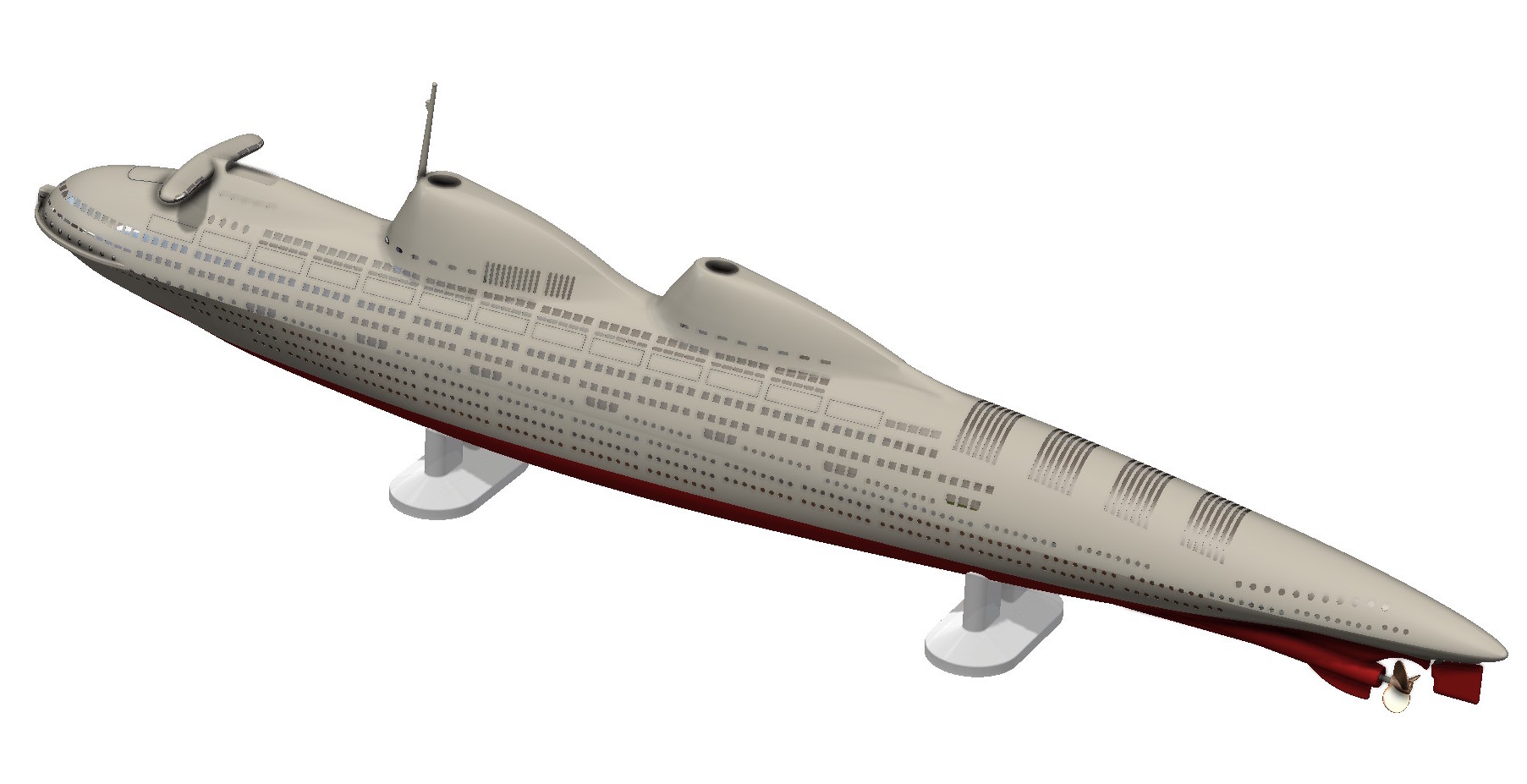

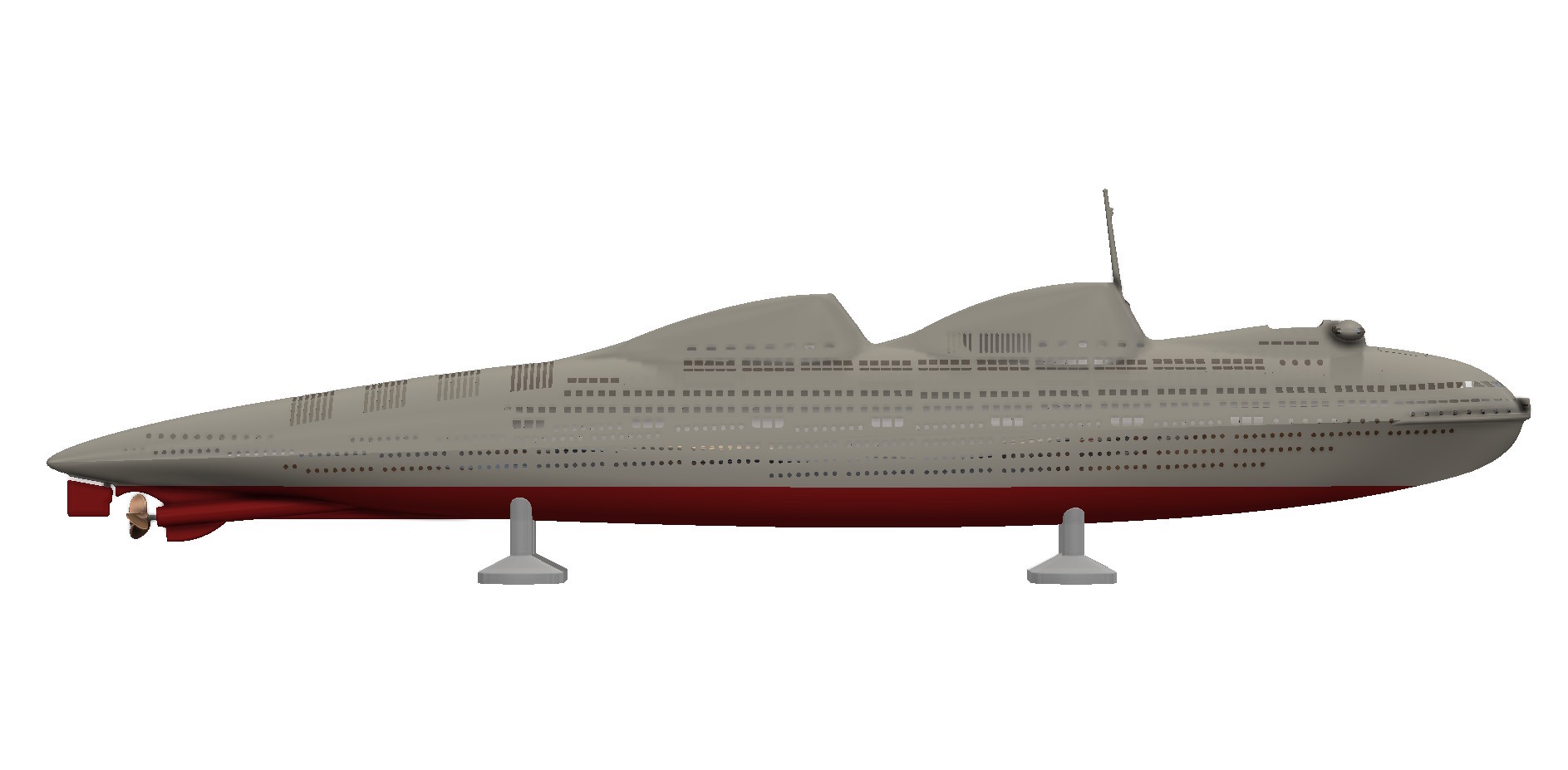

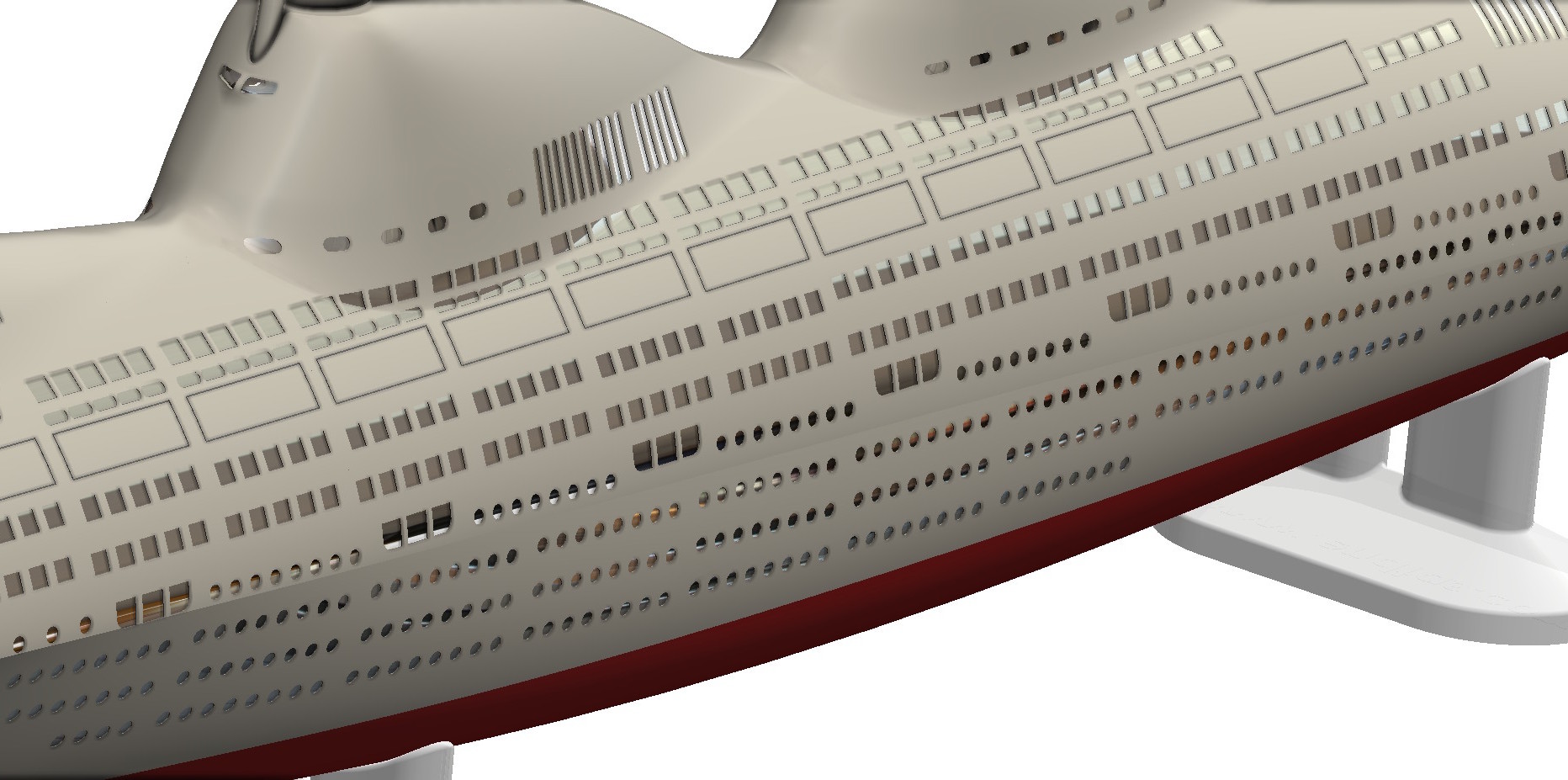

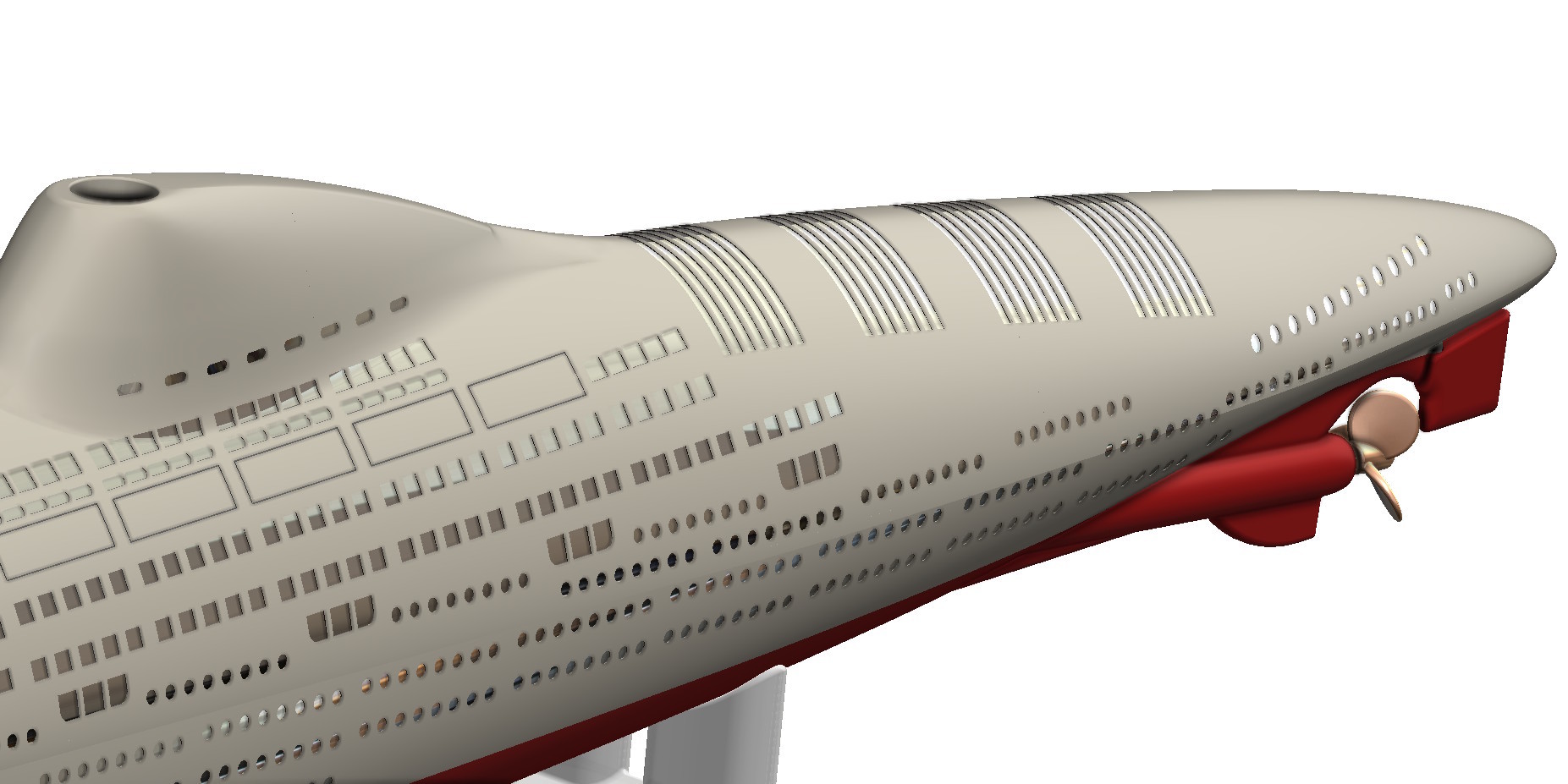

When translating a purely conceptual 1930s blueprint into a physical model, too much microscopic detail can often overcomplicate manufacturing and assembly. This 1:400 scale model—measuring approximately 830mm in length—is intentionally designed as a clean, straightforward weekend modeling project. It strikes an optimal balance, omitting tiny, fragile external components in favor of smooth, robust lines that capture the true essence and striking visual geometry of Bel Geddes’ original concept.
The result is a structurally sound mesh that looks impressive on a dry-dock display stand but is robust enough to handle the stresses of a radio-control (RC) conversion.
Engineered for Easy Radio-Control Conversion
While Norman Bel Geddes’ original conceptual layout featured a heavy quadruple-screw configuration driven by 47 interconnected diesel engines, replicating four micro-shafts at a 1:400 scale introduces immense mechanical frustration. The stern of the “Whale” tapers into an incredibly tight, aerodynamic point, leaving almost no interior volume for hardware.

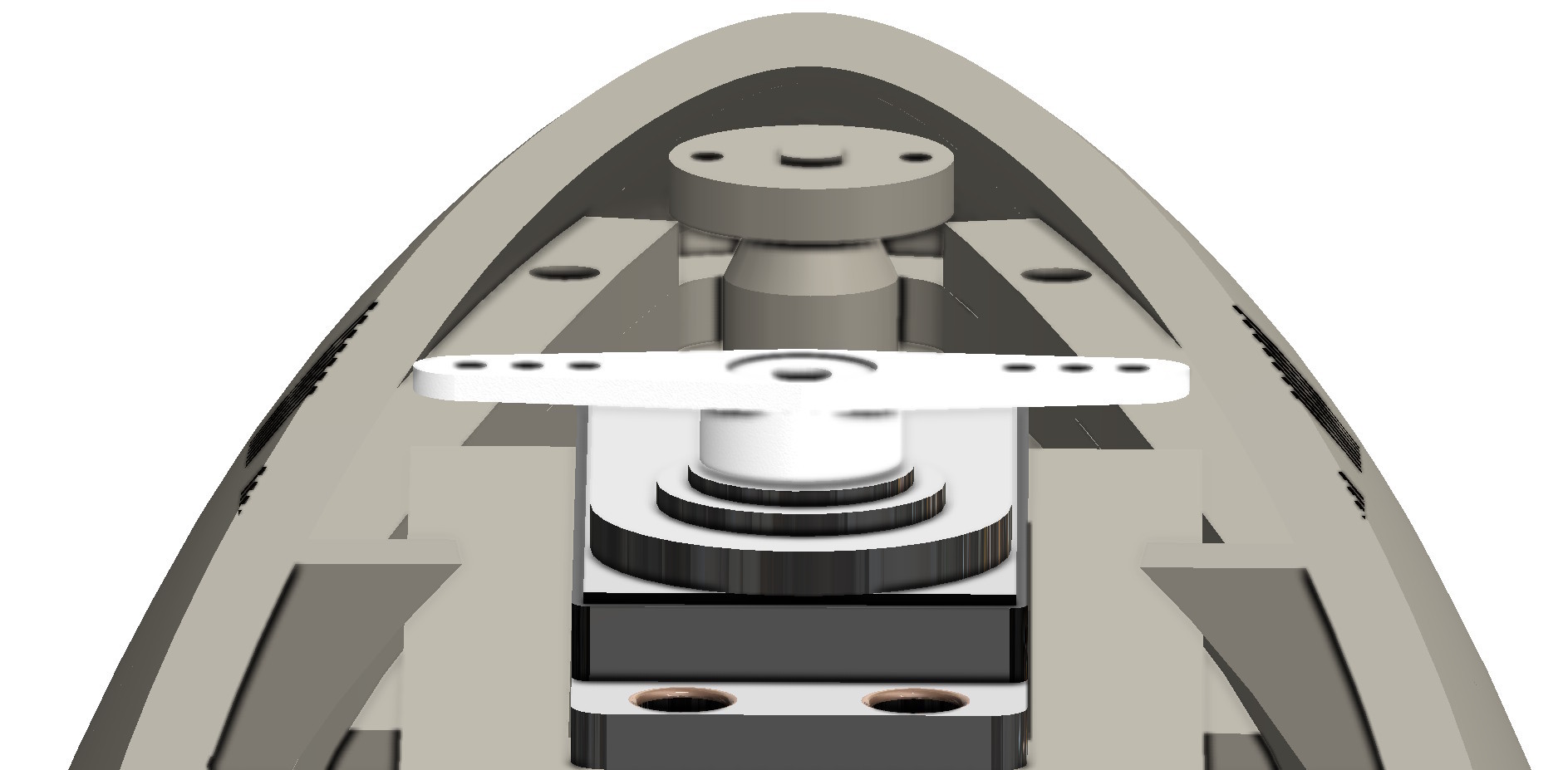

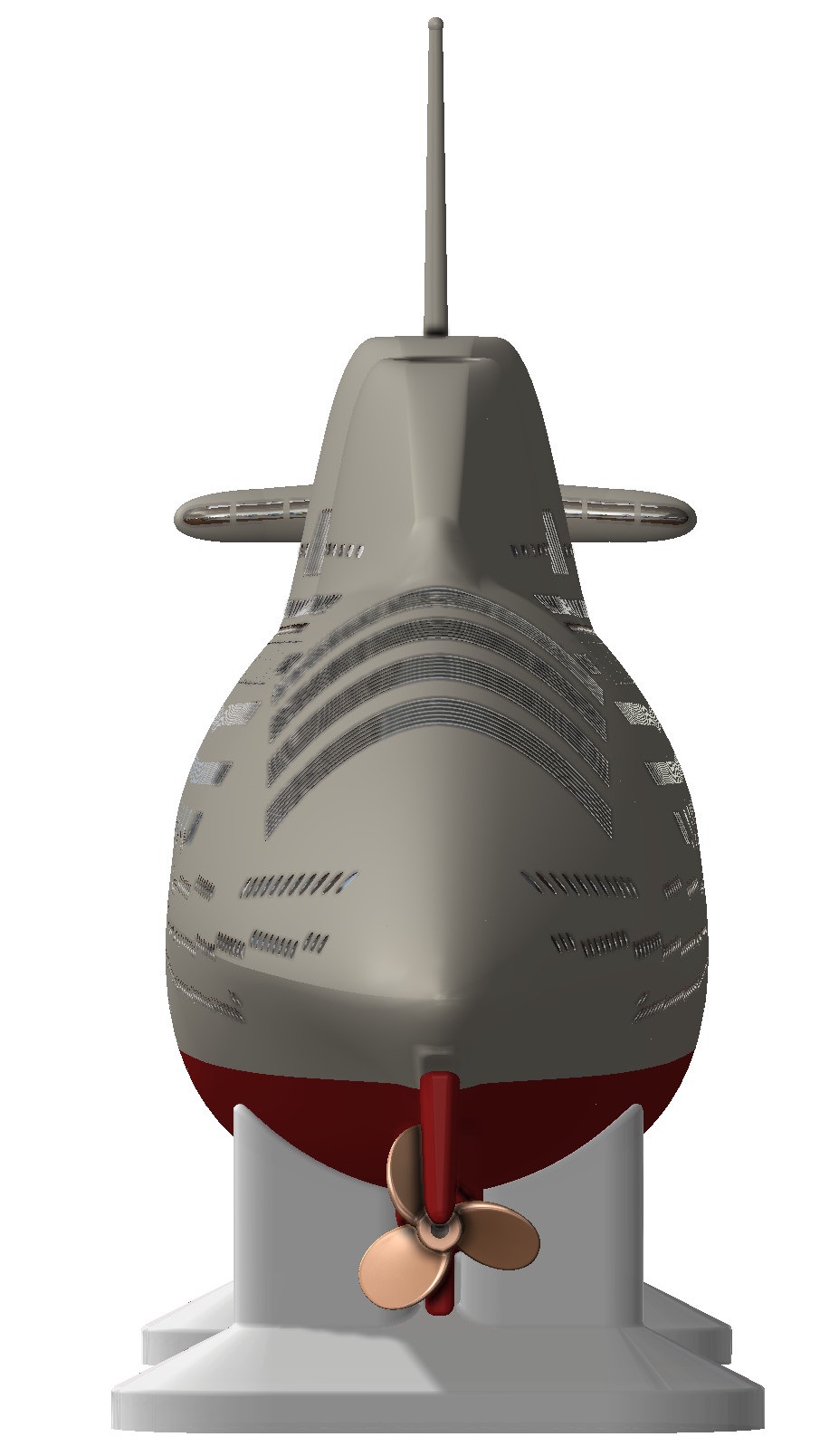

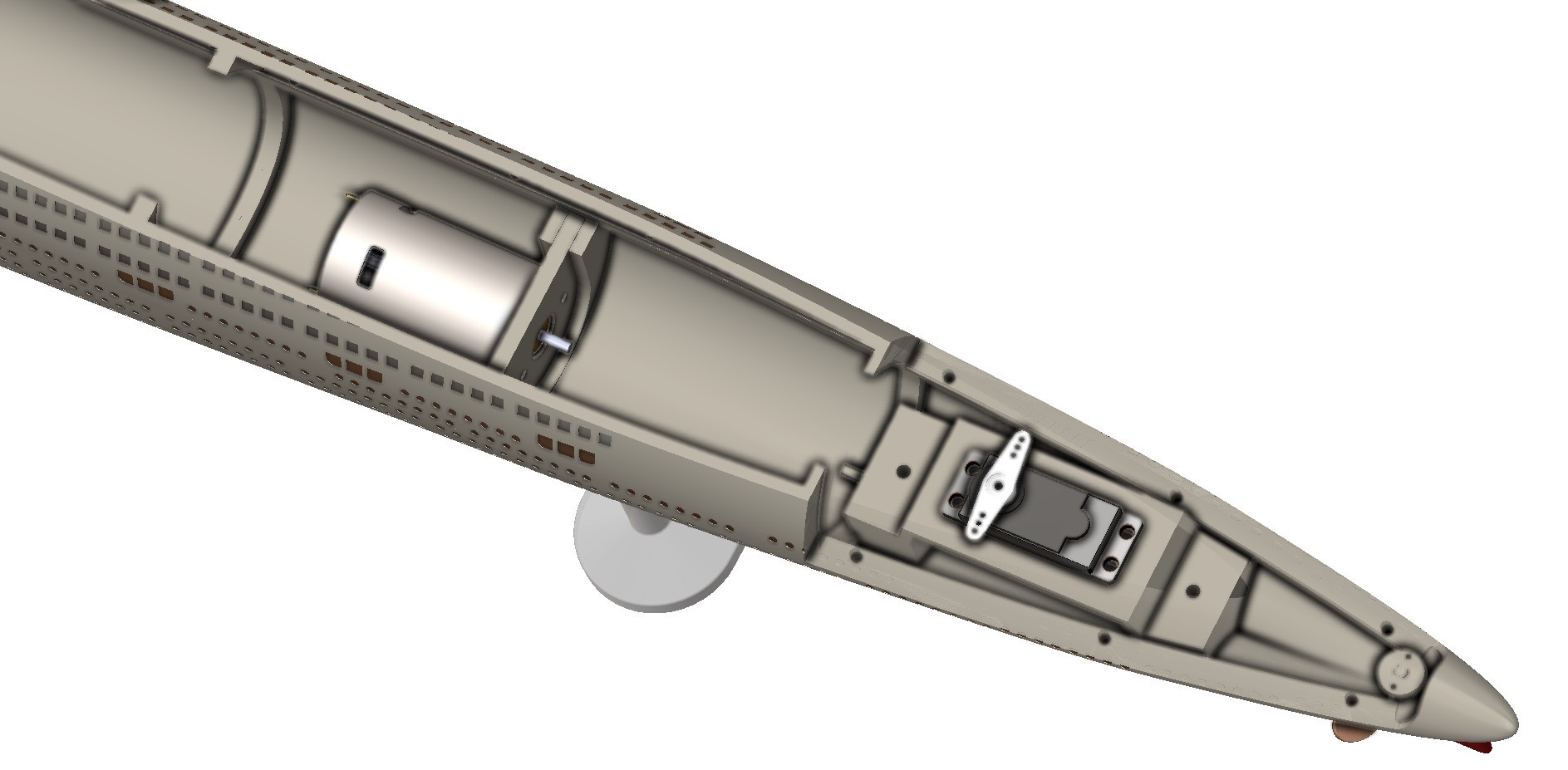

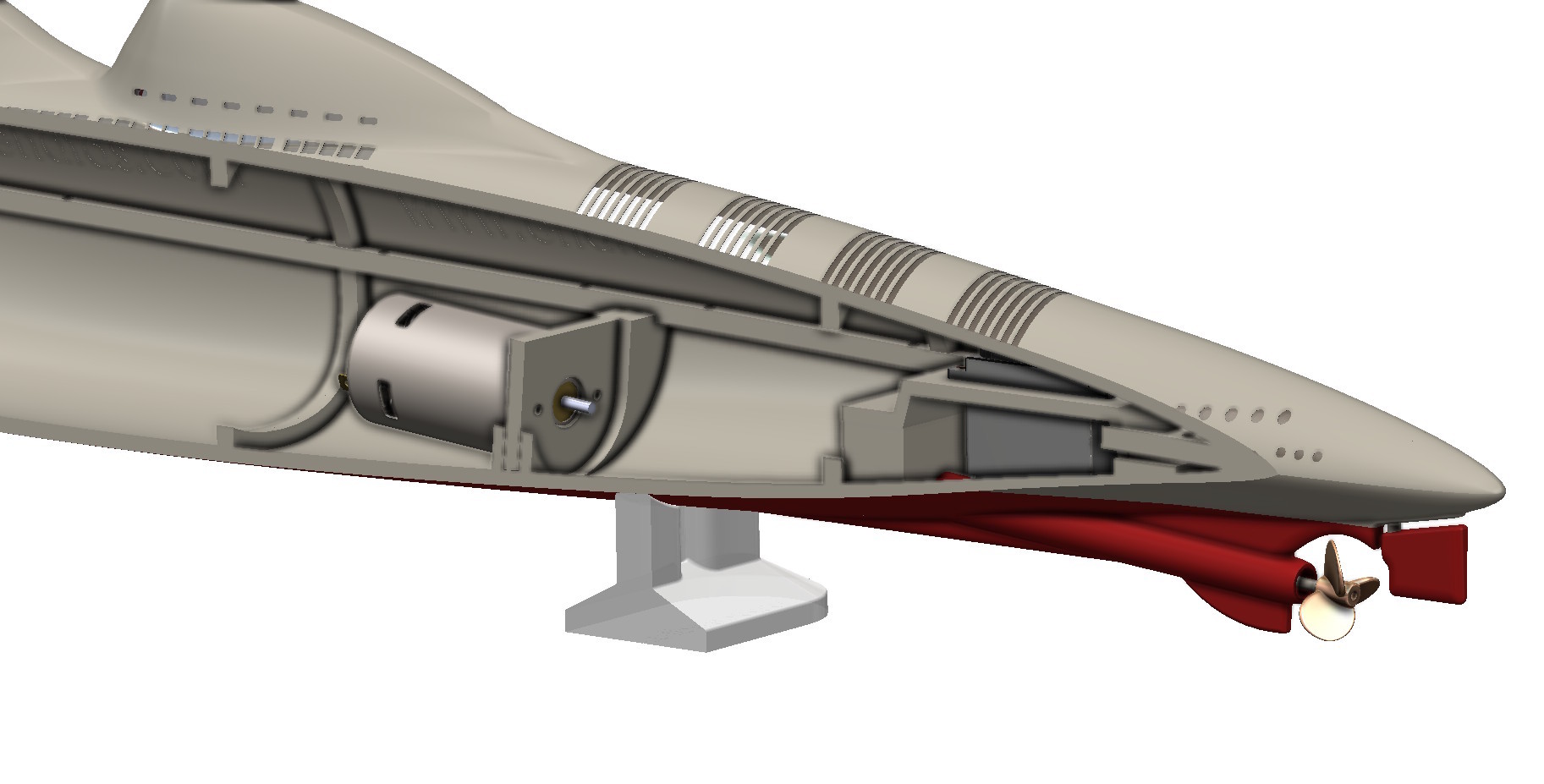

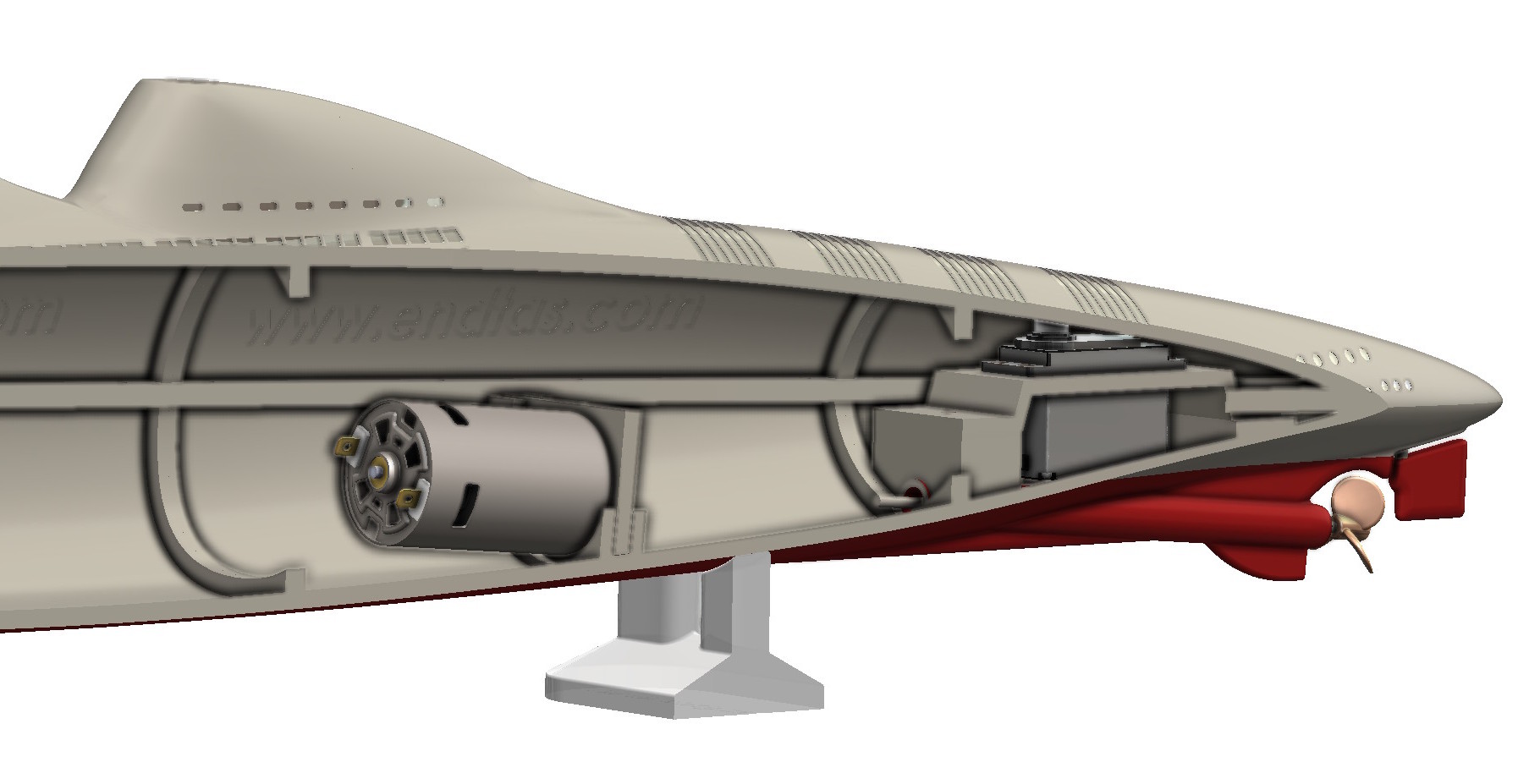

To overcome this, the design has been modified into a highly practical single-screw layout. This structural adjustment simplifies the propulsion mechanics, making a functioning water conversion achievable without forcing builders to struggle with miniscule twin or quadruple alignments in a cramped electronics bay.
Key functional features built into the files include:

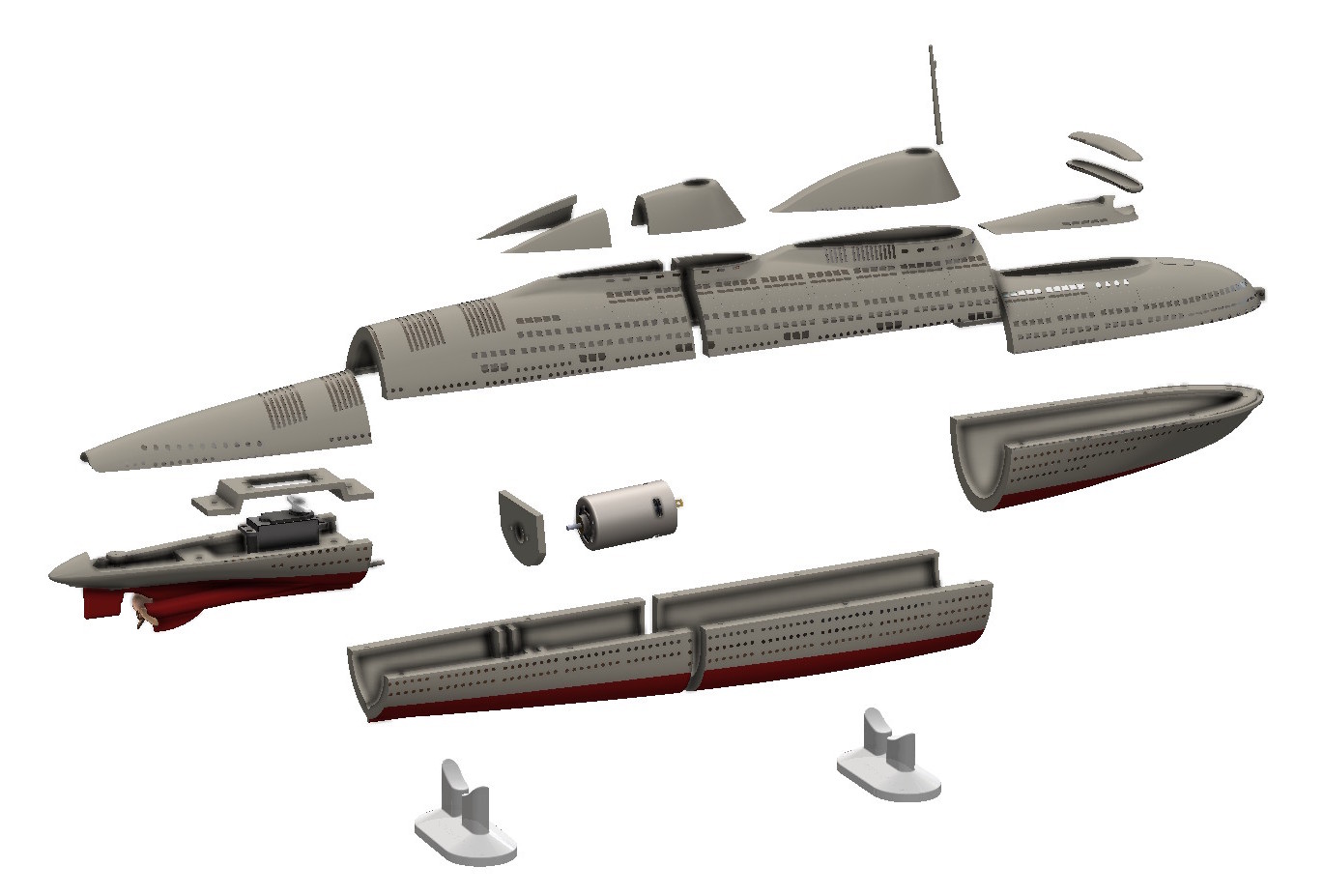

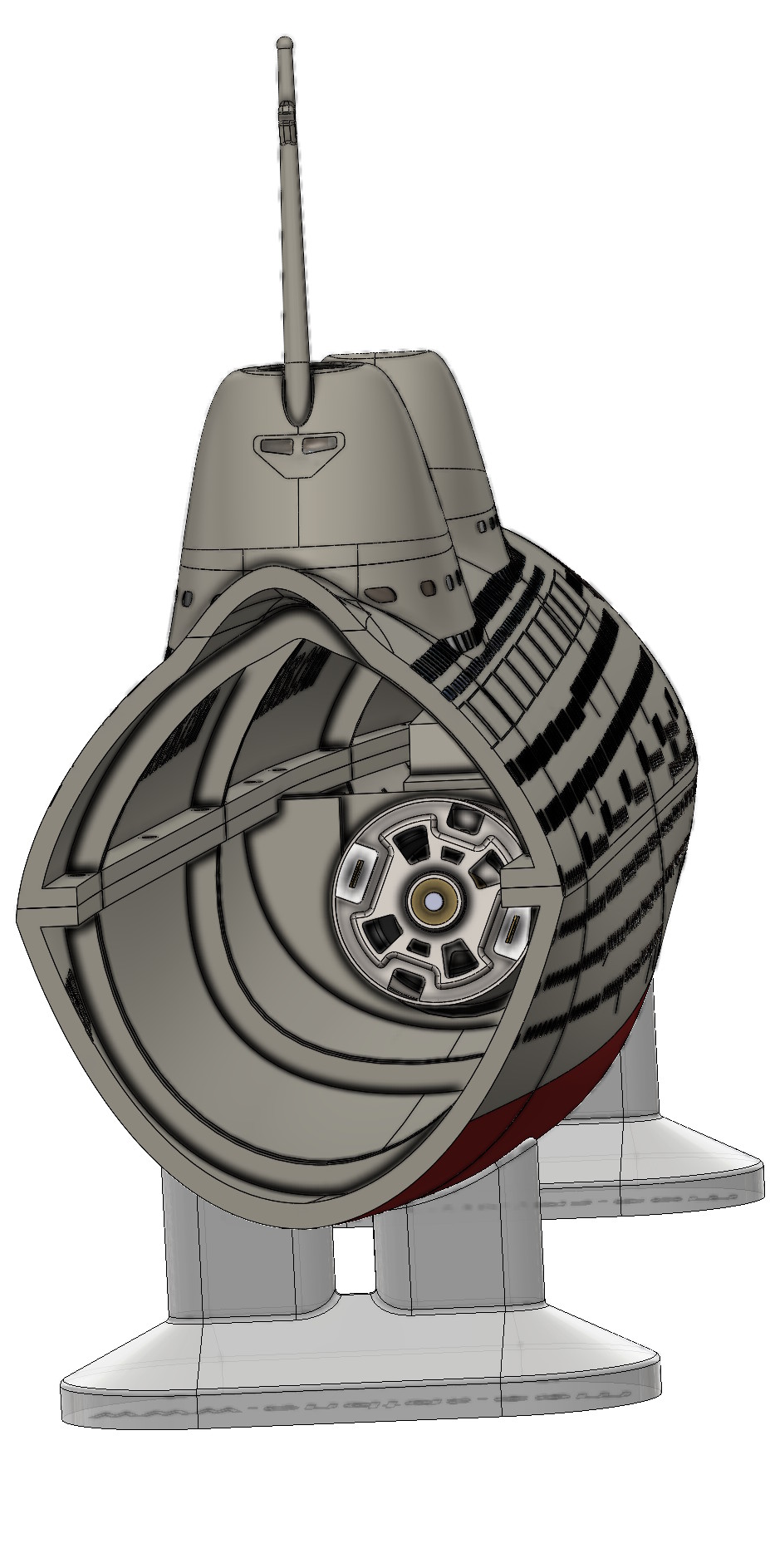

- Horizontal Split Design: The top superstructure and lower hull split completely in half along a horizontal seam, giving builders wide-open access to internal components during assembly and maintenance.

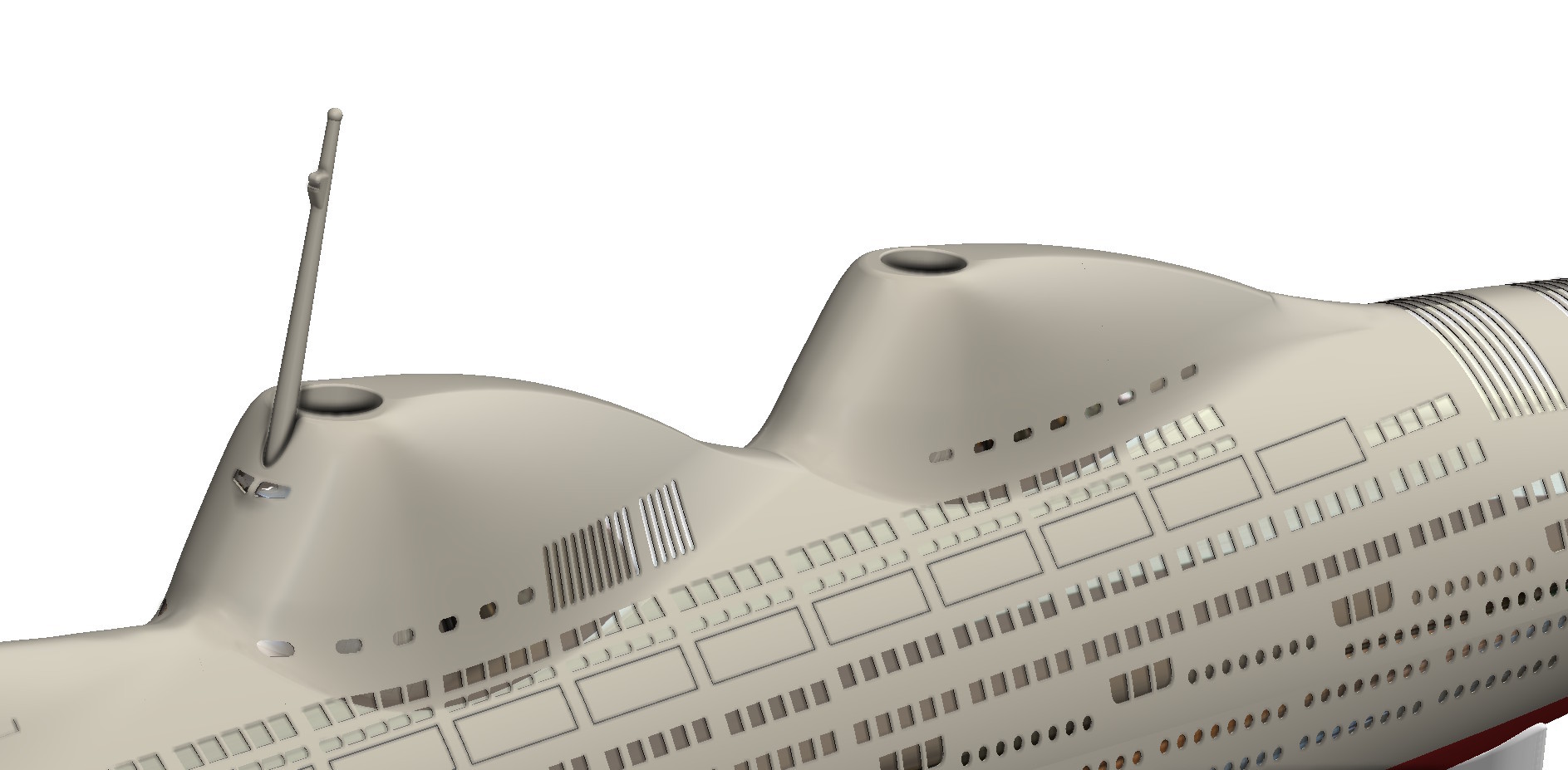

- Integrated Hatches: The captain’s bridge hump and both massive oval funnels are separate components, pulling double duty as quick-access hatches for battery swaps or radio adjustments at the pond side.
- Optimized Wall Thickness: Hull sections are designed with a sturdy 3mm average wall thickness to withstand water pressure, tapering down to 1.5mm for finer exterior details and reinforcing up to 5mm at critical structural junctions.

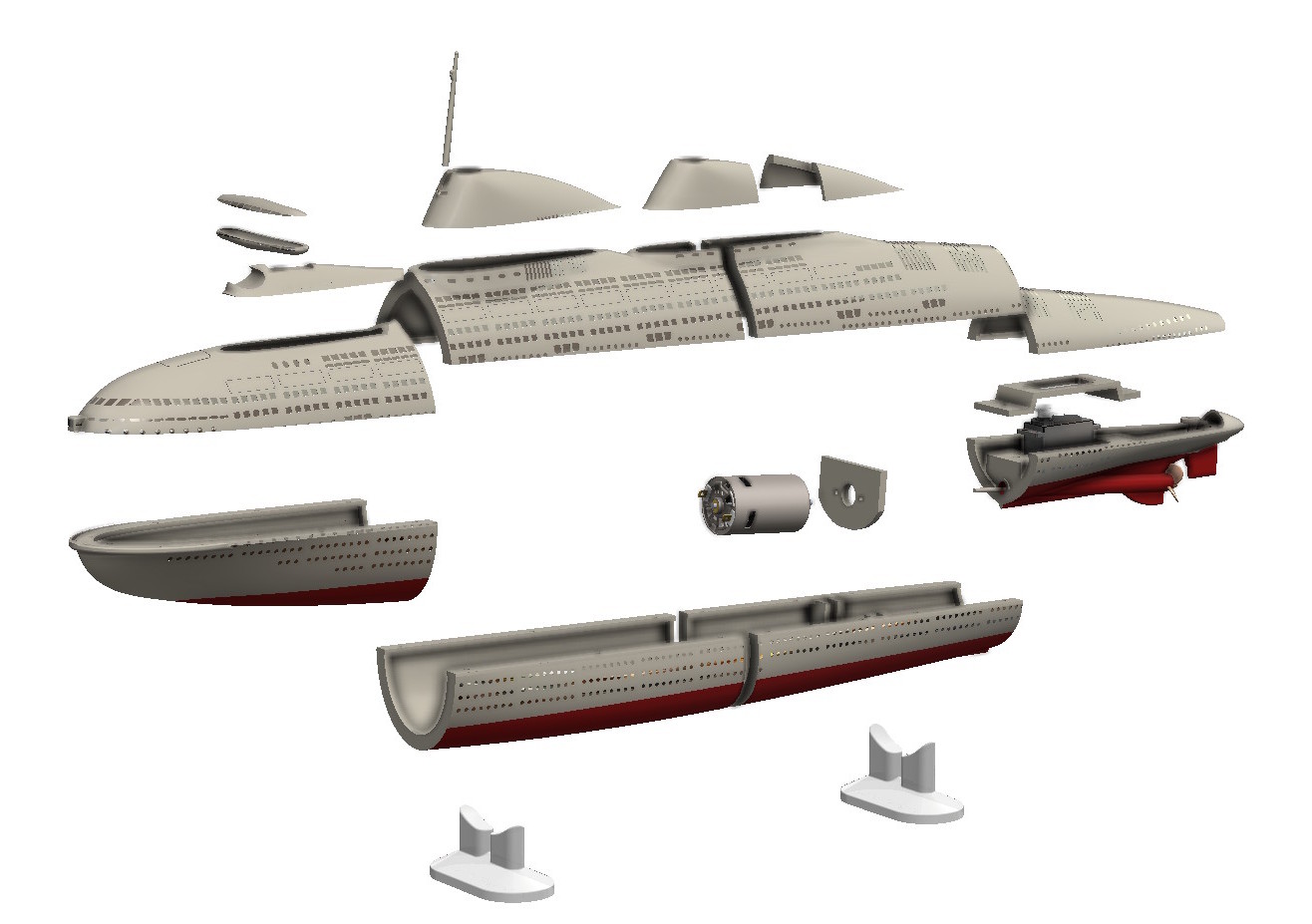

- Interlocking Joints & Assembly Clips: To ensure a straightforward weekend build, all four hull segments and four superstructure parts feature built-in alignment keys. The kit even includes a dedicated printable alignment clip to lock the seams perfectly flush while your glue or epoxy cures.
Technical Specifications & Contents
The downloadable kit comprises 29 total parts and is provided in two standard digital formats to suit different workspace preferences:
- High-Poly STL Files: Ideal for clean, high-resolution sliced printing on standard monochrome or resin systems.
- Pre-Colored 3MF Files: Ready for multi-material or multi-color desktop printers to easily assign distinct hull and deck colors right out of the box.

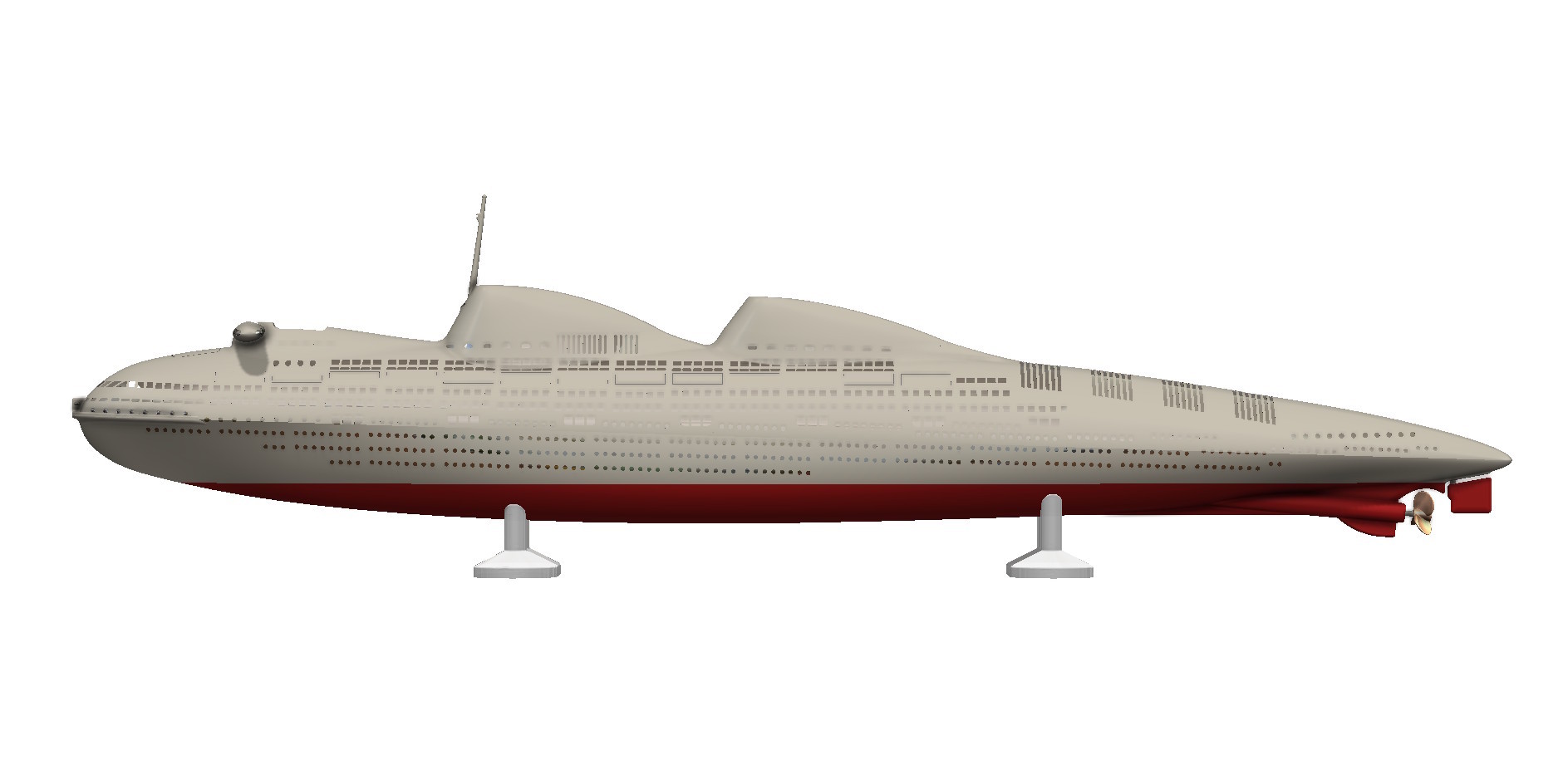

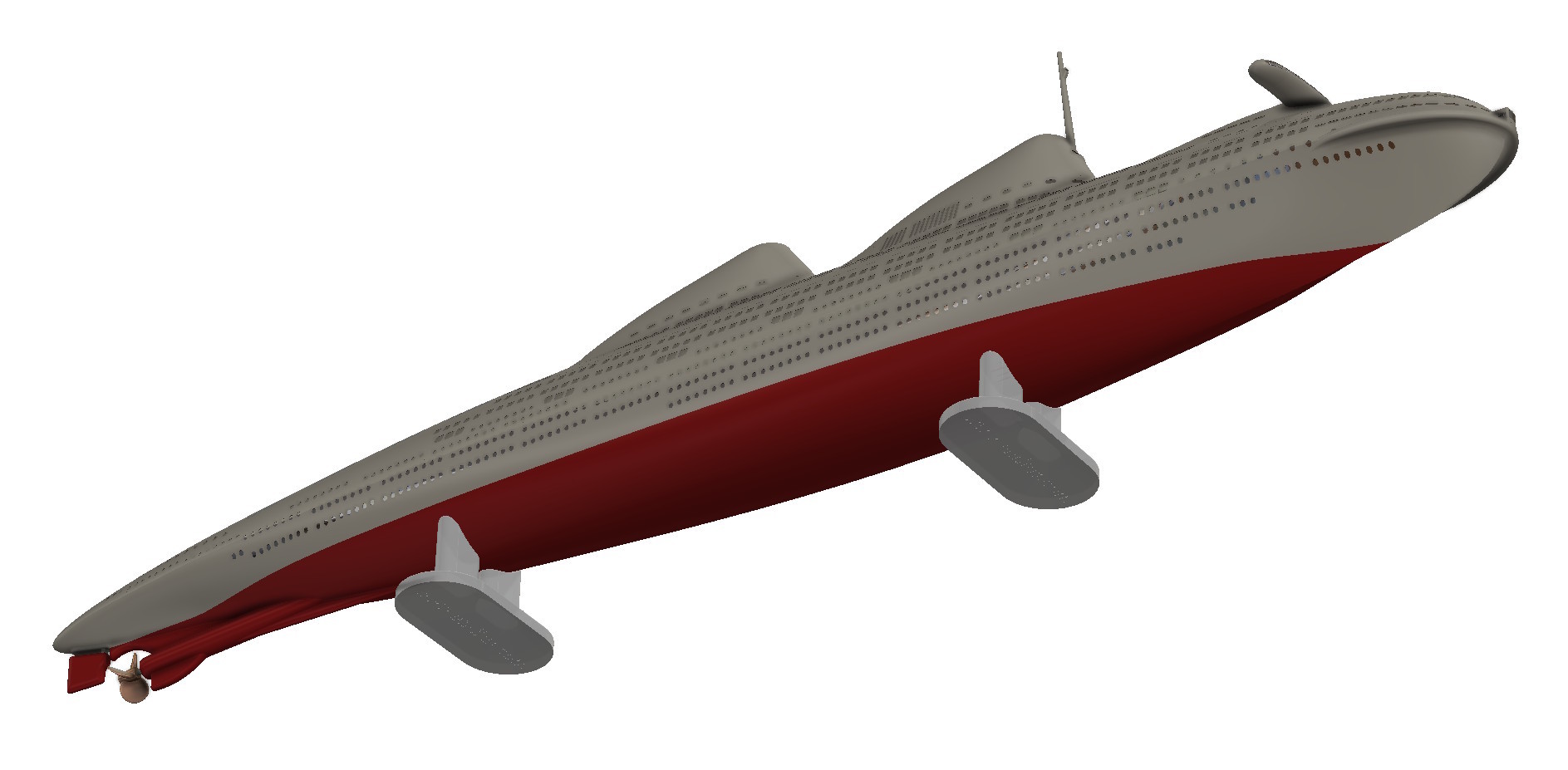

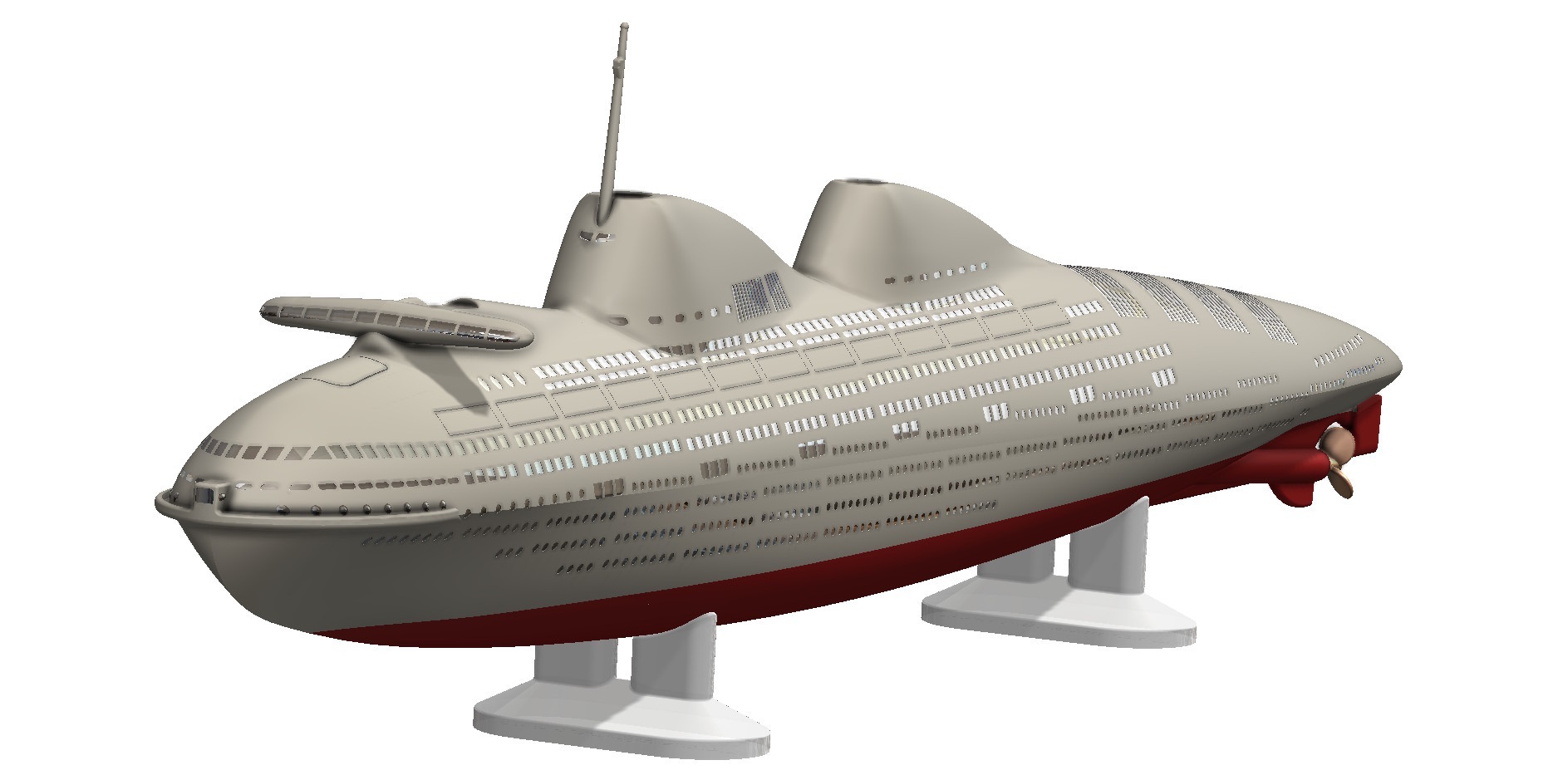

- Dry-Dock Stands: Included for modelers who prefer to construct a clean, historical static display centerpiece for their shelves.
By combining the streamlined spirit of 1930s industrial optimism with modern 3D manufacturing principles, this project transforms a legendary unbuilt concept into an accessible, rewarding build. Whether you are an enthusiast of Art Deco maritime history or looking for a distinct weekend pond cruiser, this model provides the right amount of detail for a highly successful project.
If you are interested in exploring the files or downloading the kit for your own printer, you can find the complete 1:400 scale package hosted directly on the endtas Cults3D Storefront.
