Steampunk Table Clock

This is a design for a table clock which uses the steampunk clock hardware & firmware.

Solidworks screenshot of the design in steampunk clock mode

Solidworks screenshot of the design in steampunk clock mode

IMG_1804

table clock running with bikepunk face graphics.

Read more to download the  STL, PCB and HEX files for  design. Pretty much everything to build this product.

From Behind

From Behind

Devon Thread Mode

Devon Thread Mode

rear view

rear view

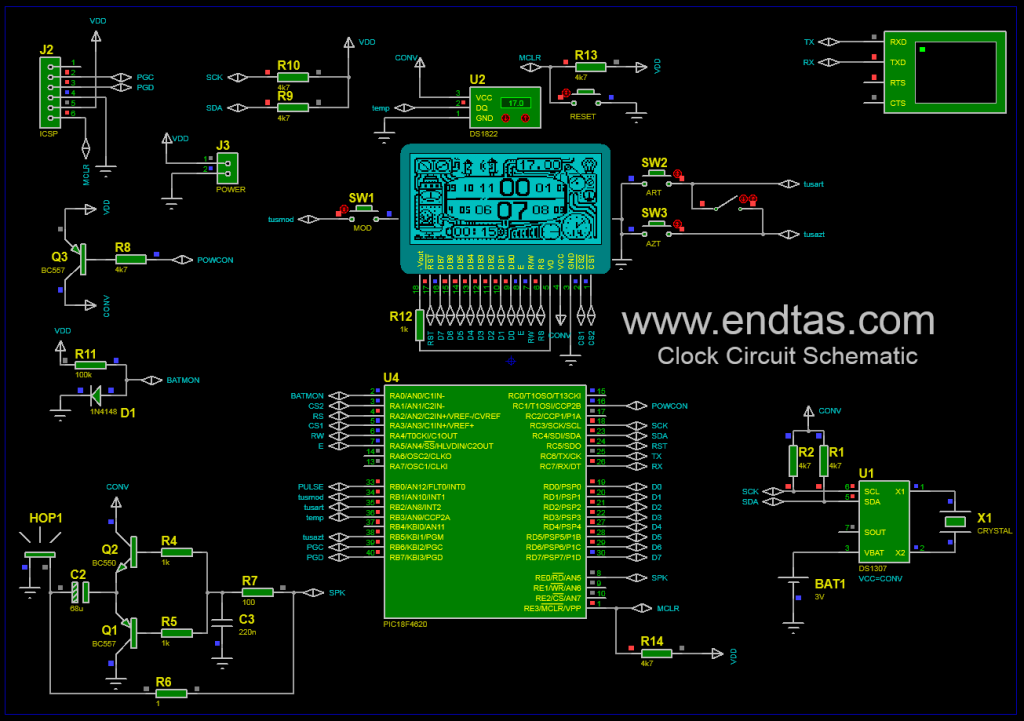

Circuit Schematic

Circuit Schematic

128x64 Graphics LCD and the mainboard

128×64 Graphics LCD and the mainboard

2012-12-15 15.29.59

The board from the solder side

LCD assembled onto the PCB

LCD assembled onto the PCB

Cuckoo Clock Mode

Cuckoo Clock Mode

Steampunk

Steampunk

Temperature Logger Mode

Temperature Logger Mode

Flames in the oven

Flames in the oven

Motorcyclepunk

Motorcyclepunk

IMG_1778

Bicyclepunk 😀

STL files for 3D printing

[download id=”33″]

if you don’t have access to a 3D printer, you can have shapeways.com print one for your online, by using this link for as low as 24€.

Note that the PCB is one sided. Tracks on the other side of the pcb can be made by jumper wires.

[download id=”41″]

Hex file is below.

[download id=”42″]

click the link below to purchase this project as a whole including all C source code, solidworks files, pcb layout files.

https://secure.2checkout.com/order/checkout.php?PRODS=19932357&QTY=1&CART=1&CARD=2&DESIGN_TYPE=2
