Dummy Security Camera

I’ve searched the net for a dummy security camera to place in front of my apartment, didn’t be able to find a good & free one. So designed my own.

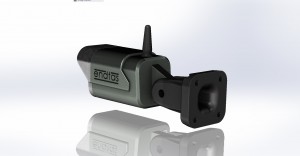

The design

The design



The camera lens inside is actually a wide angle LED lens which is available on the market. Even without it the cam will look very real.

There are 4 holes for 3mm leds that will imitate IR lighting leds inside the cameras. There is empty space inside so if you like you can place a circuit to flash them, or anyhting else. Even a real camera can be fitted in, making my design not a dummy but a real security cam. Ebay is full of small cameras, many of them wireless that canfit inside.

Printed and painted camera on duty.

Printed and painted camera on duty.

There is also a dummy wireless antenna thing on top.





2 3 4 5 6



IMG_2155

wide angle led colimator LENSes.

led circuit

The sample circuit for lighting the leds. same color leds can be connected in parallel.

IMG_2103 IMG_2104

IMG_2105 IMG_2106



IMG_2112 IMG_2111 IMG_3599 IMG_3601 IMG_3602 IMG_3603 IMG_3596 IMG_3595 IMG_3594 IMG_3593



camera print among other prints on the shelf

camera print among other prints on the shelf

click below link to download latest STL files for 3d printing.

dummy camera STL files (346)
