Mp3 Player Headlight for bikes (quick release design improved and STL files added)

Here is an other bicycle product.

There are already some products in the market that combines mp3 playing and a headlight  but although china originated they are a bit too expensive. on the other hand, there are many headlights, hand torches and mp3 players which all are very cheap.

So I’ve concentrated on this deep 🙂 issue and designed an mp3-headlight-torch suitable both for bike as well as manual usage by using the parts of products which are already present  abundantly and cheaply at the market.

2

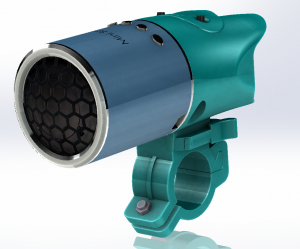

Here is the design



4

First I’ve bought several cheap mp3 players. They are around 12$ in İstanbul and their performance is quite good, they even have radios and equilizers. 🙂



Here are the mp3 players
Here are the mp3 players

Nice Thing is the players having a small plastic base which is very suitable for being used as a functional part for combining my designed headlight and player itself.

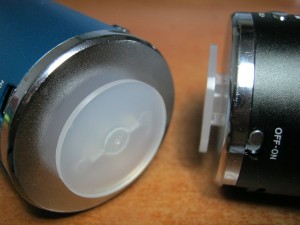

plastic base part
plastic base part



5 3 1





7 6



quick release.
quick release.
side view
side view
While printing with the Up printer
While printing with the Up printer





















Parts from a cheap hand torch or circuitry given in our intelligent bike light project can be used for manufacturing this product along with a cylindirical mp3 player similar to the ones above. I’m sure you can find them around you, they are sold everywhere on the globe. 😀

Meanwhile I’ve completed assemby of the first prototype to actually see all the problems. Well it turned out to be not too many, enabling me to assemble it into a solid product. I was planning to put extra batteries inside to make power systems of the mp3 player and the light be diffferent. But due to limited interior space I’ve looked for a way to use the mp3’s present battery for both purposes. I’ve disassembled the player, soldered a pair of wires to the battery terminals and took the power out for the light. I’ve drilled a hole at the mp3 player to let the cables out.

Here are some assembly photos

circuitry inside.
circuitry inside and 5mm white led in the middle
pair of 1w leds connected in parallel.
pair of 1w leds connected in parallel.
internal battery of the player.
internal battery of the player.
IMG_1844
all electrical wiring is complete, ready to screw shut the product
complete and running
complete and running
the lighting power is pretty good.
the lighting power is pretty good.
the lighting power is pretty good.
the lighting power is pretty good.
running
running



download STL files from below:

mp3 player headlight STL files (501)
