Mp3 Player Headlight for bikes.

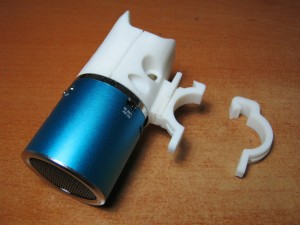

quick release.
quick release.

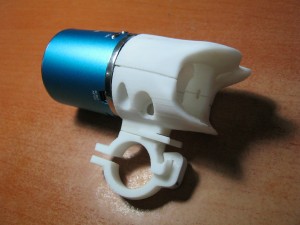

side view
side view

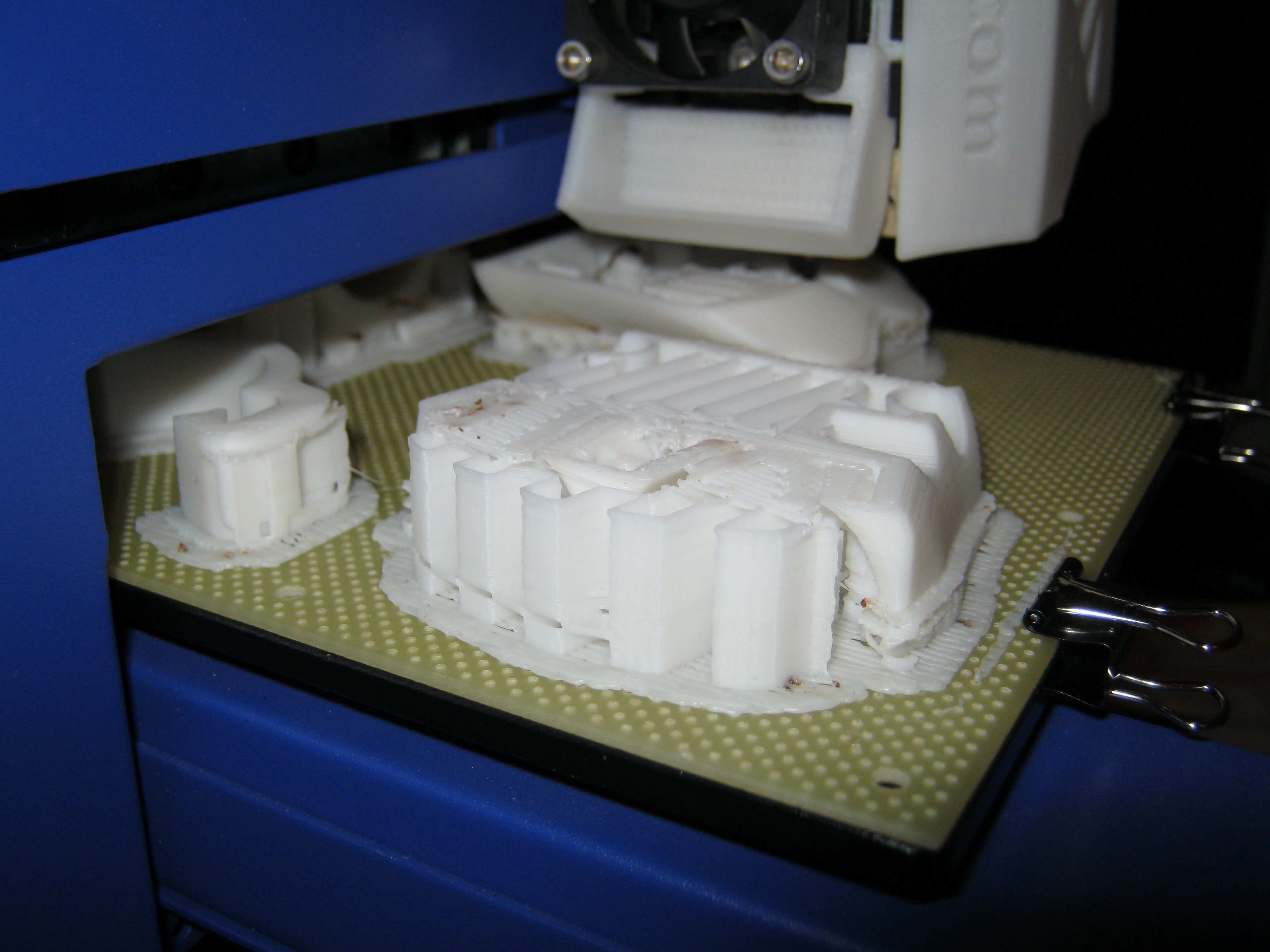

While printing with the Up printer
While printing with the Up printer

Parts from a cheap hand torch or circuitry given in our intelligent bike light project can be used for manufacturing this product along with a cylindirical mp3 player similar to the ones above. I’m sure you can find them around you, they are sold everywhere on the globe. 😀

Meanwhile I’ve completed assemby of the first prototype to actually see all the problems. Well it turned out to be not too many, enabling me to assemble it into a solid product. I was planning to put extra batteries inside to make power systems of the mp3 player and the light be diffferent. But due to limited interior space I’ve looked for a way to use the mp3’s present battery for both purposes. I’ve disassembled the player, soldered a pair of wires to the battery terminals and took the power out for the light. I’ve drilled a hole at the mp3 player to let the cables out.

Here are some assembly photos

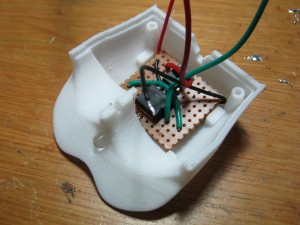

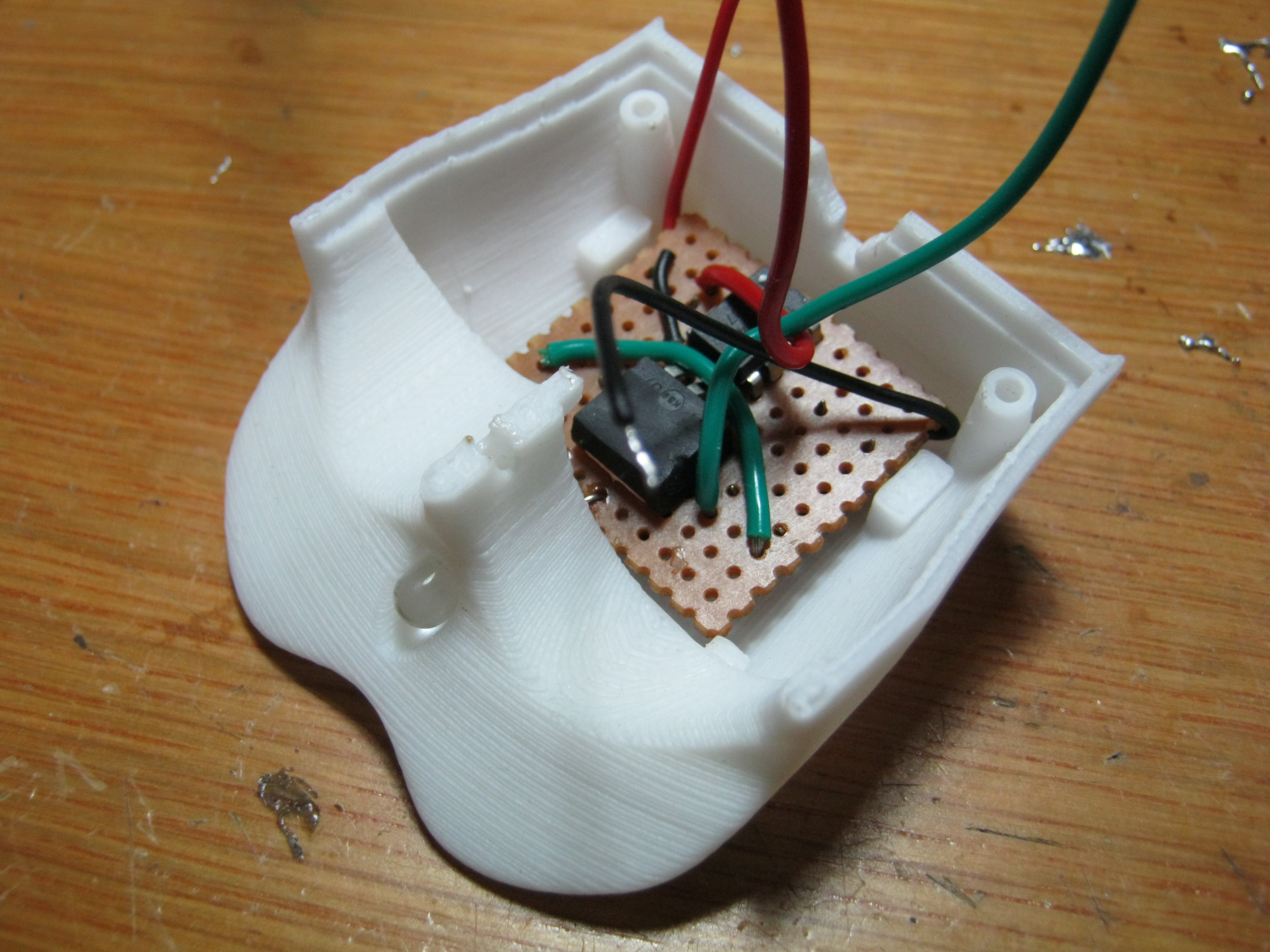

circuitry inside.
circuitry inside and 5mm white led in the middle

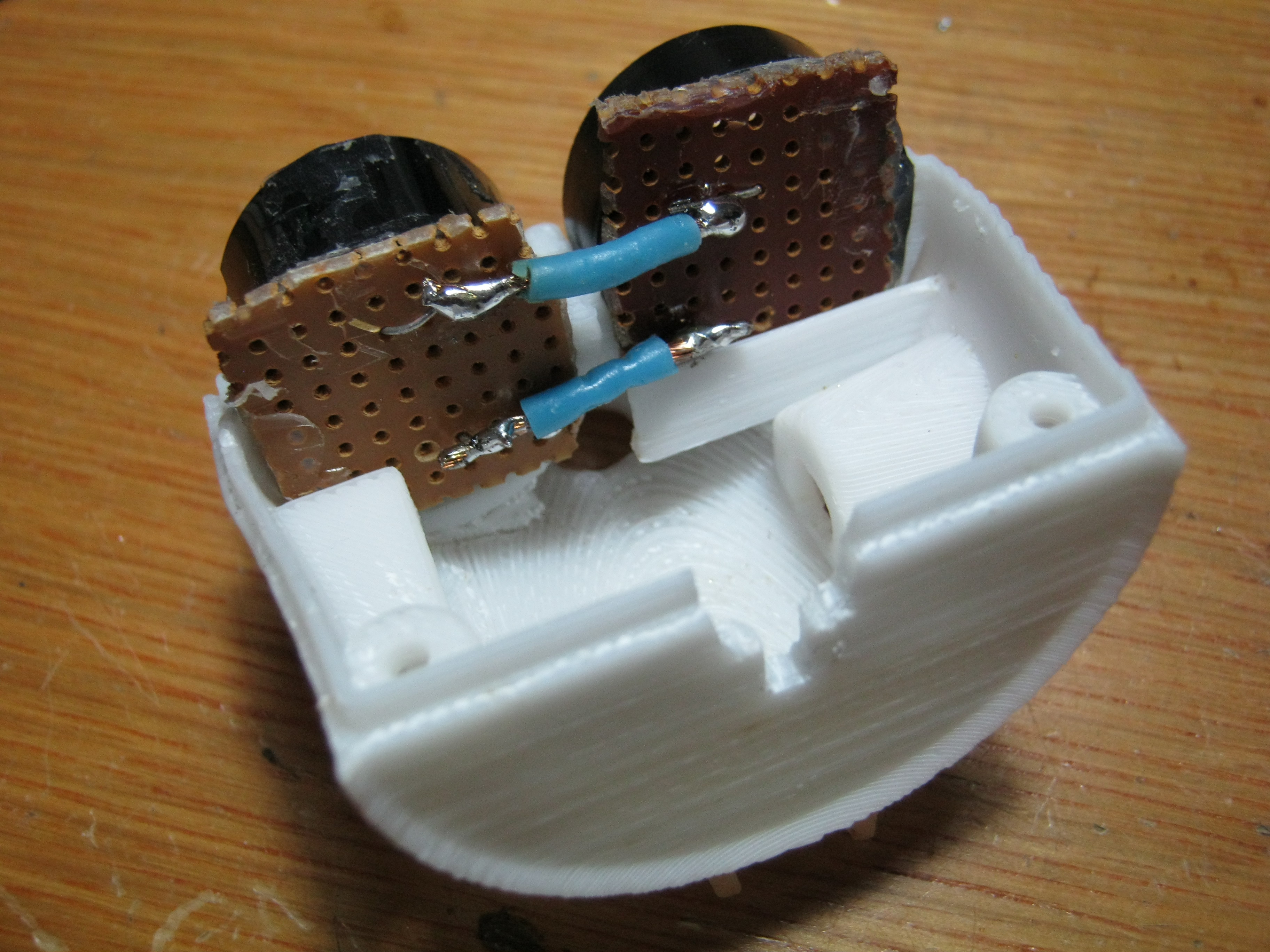

pair of 1w leds connected in parallel.
pair of 1w leds connected in parallel.

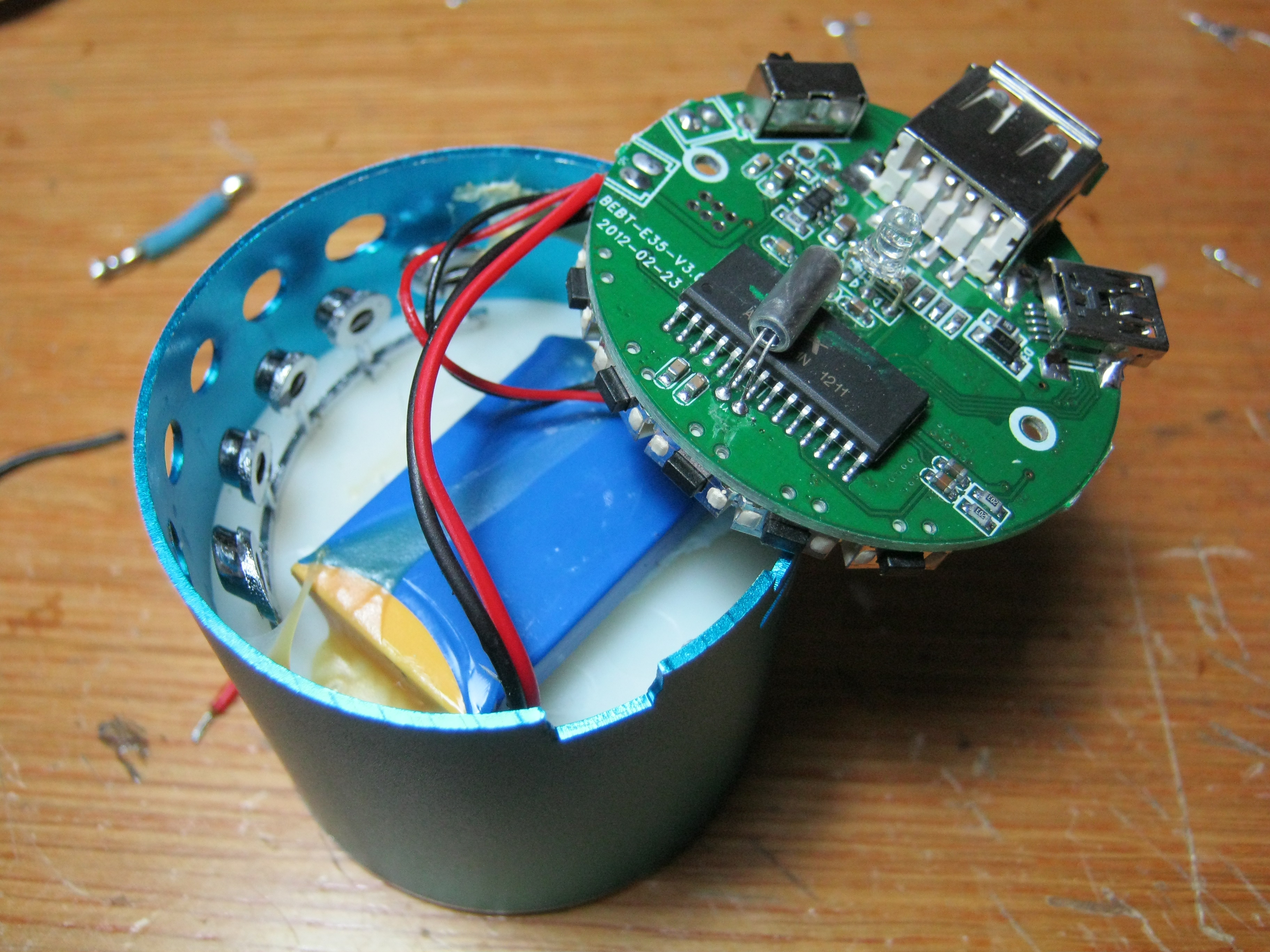

internal battery of the player.
internal battery of the player.
IMG_1844

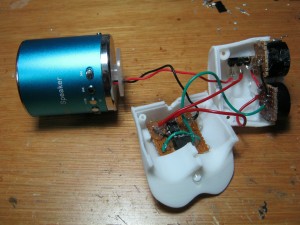

all electrical wiring is complete, ready to screw shut the product
