Mechanical Remote Control Handheld Unit

Posted on by in 3d models, Antique Cars, Cars, Products, Toys, Vehicle Accesories, Vehicle Models, Vehicles | Comments Off on Mechanical Remote Control Handheld Unit

This is a 3d printable model for mechanical RC projects. It uses bicycle brake wires for transferring steering information and there is empty space inside for two 18650 Type li-ion batteries.

There are two versions as shown.

The first version has round buttons and the second one has rectangle switches. You can mix different top covers to obtain other versions. Continue reading for more info.

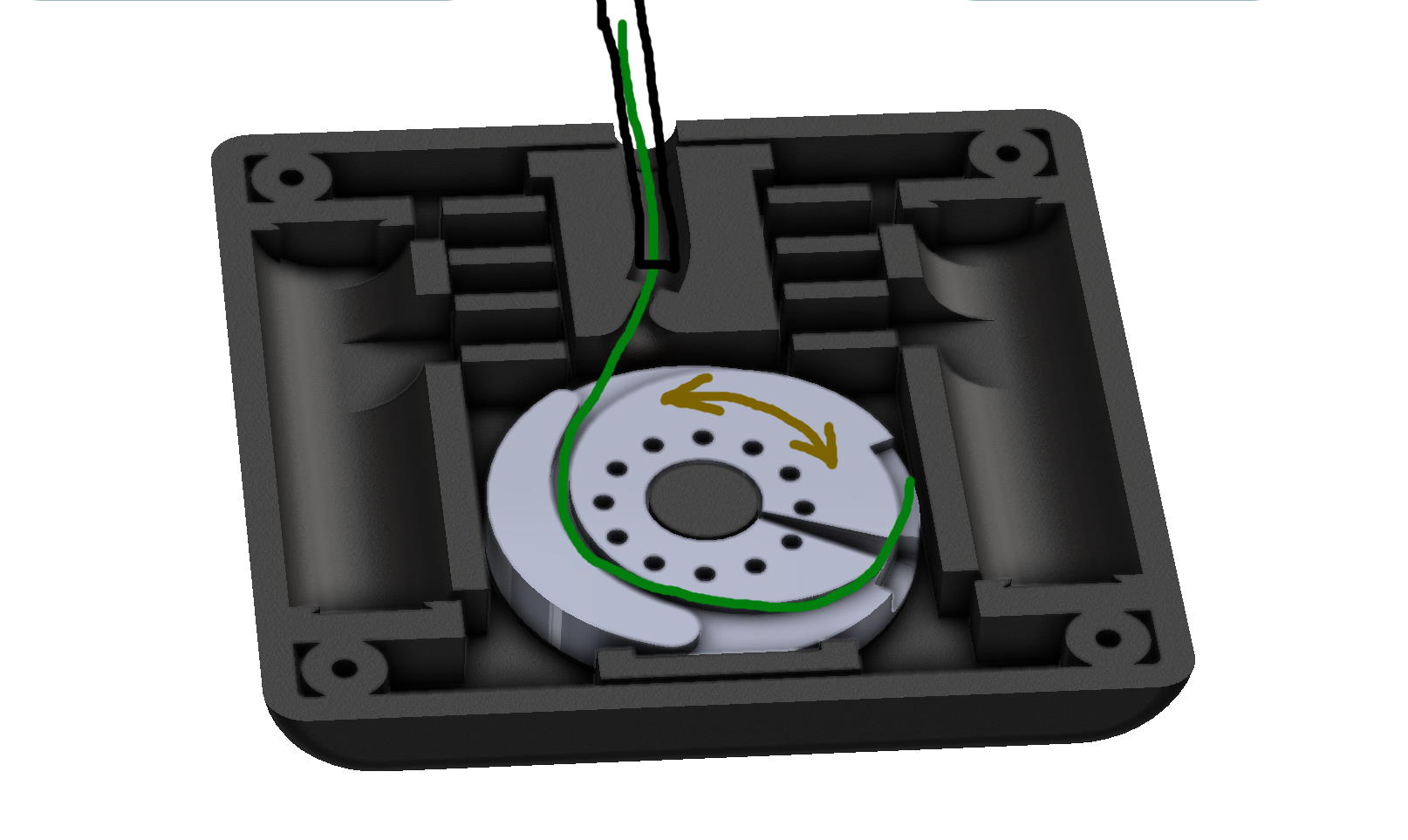

when the steering wheel is rotated, the bicycle brake inner cable (green) is pulled or pushed out of the controller body. There is also a bicycle brake outer cable (black) to maintain better transfer.

more renderings.

You can download a study model below.

RC-controllerDownload

If you want to support our site and buy this controller, you can use this download link.
