Mini Bass Speaker

Posted on 21 April 2022 by yonetici in 3d models, General, Music, Products, Speakers | Comments Off

I’ve made a new speaker design.

interior piping for better bass response.

interior piping for better bass response.

lower hole can be left open or covered with a flexible diaphram for better bass sounds.

This is an addition to my voight pipe speaker designs (<– Check the link for more speakers).

Read on for more renderings and STL files for 3d printing.

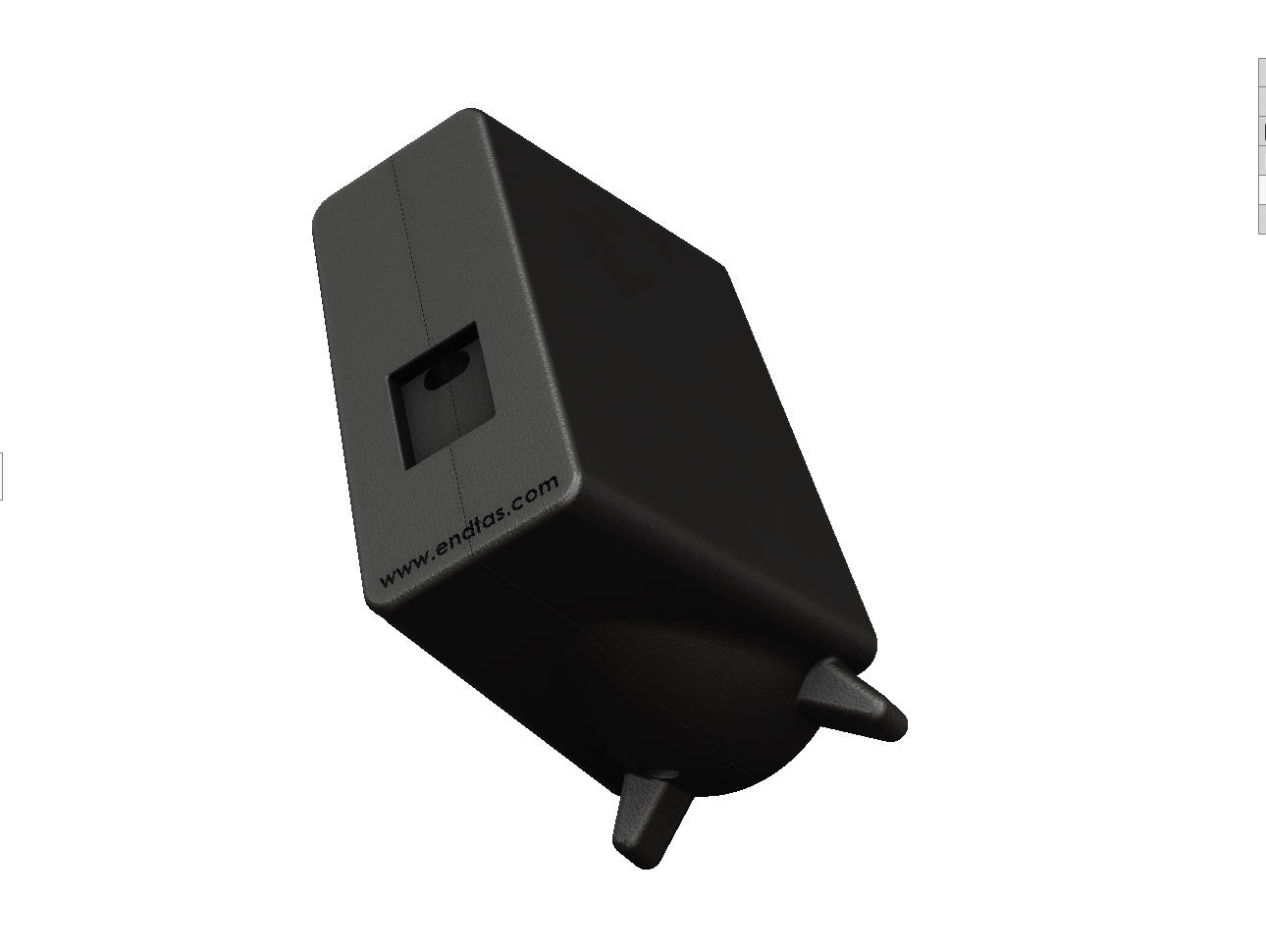

several more views of the design.

several more views of the design.

it is intended to be used with 40mm speakers which are available in many online stores and also used in a lot of mini mp3 players,

if you have a broken mp3 player lying around, there probably at least one of those speakers in it.

The mp3 player

Below is the STL file for the speaker used. You can use it as a dimension reference.

Speaker-with-drum-speaker-40-1 Download

Below are the STL files.

Box-w-drum-case-left Download

Box-w-drum-case-right Download

Box-w-drum-membrane-frame Download

Box-w-drum-speaker-frame-inside Download

Box-w-drum-speaker-frame-outside Download

Box-w-drum-screw-hole-cover Download
